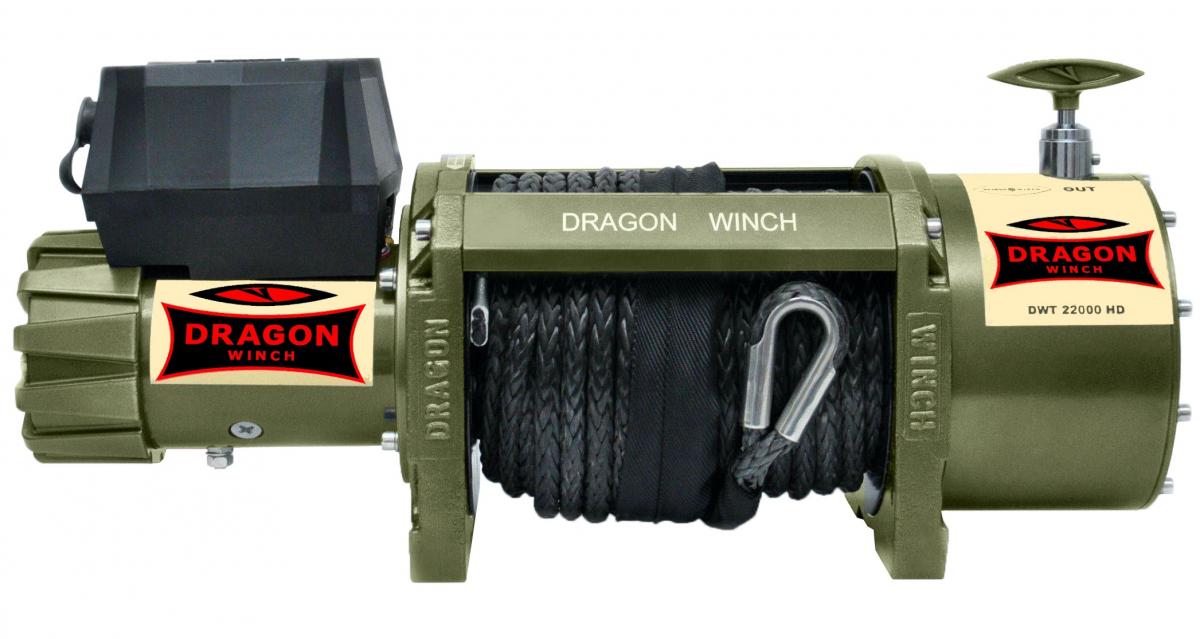

Product attributes
| Dedicated : |  ,  |
| Voltage: | 24V |
| Pulling rate: | 22000 lb/ 9979 kg |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 463:1 |
| Brake: | dynamic |
| Length of the synthetic rope: | 21 m |
| Weight: | 68 kg |
| Mounting bolt patern: | 254 mm x 114 mm/254 mm x 164 mm |

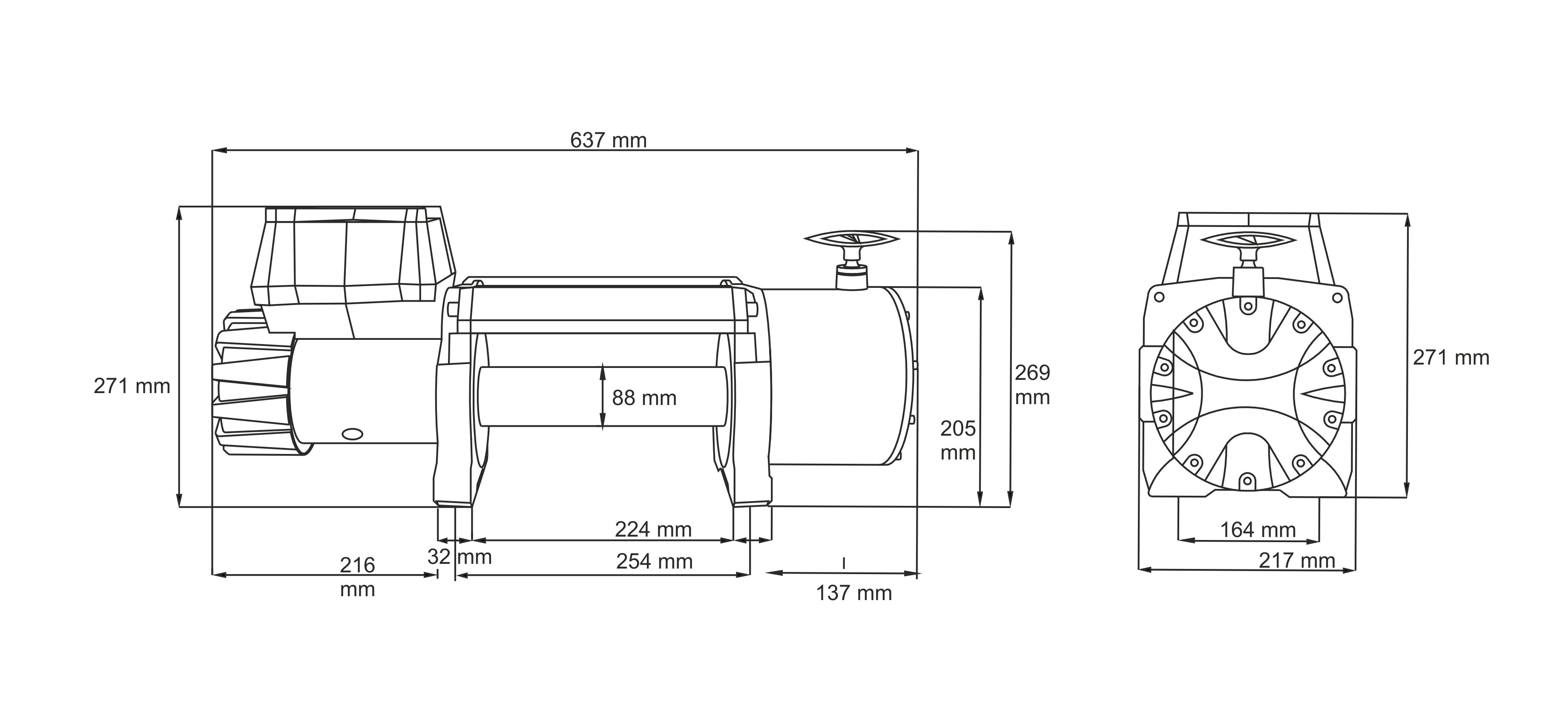

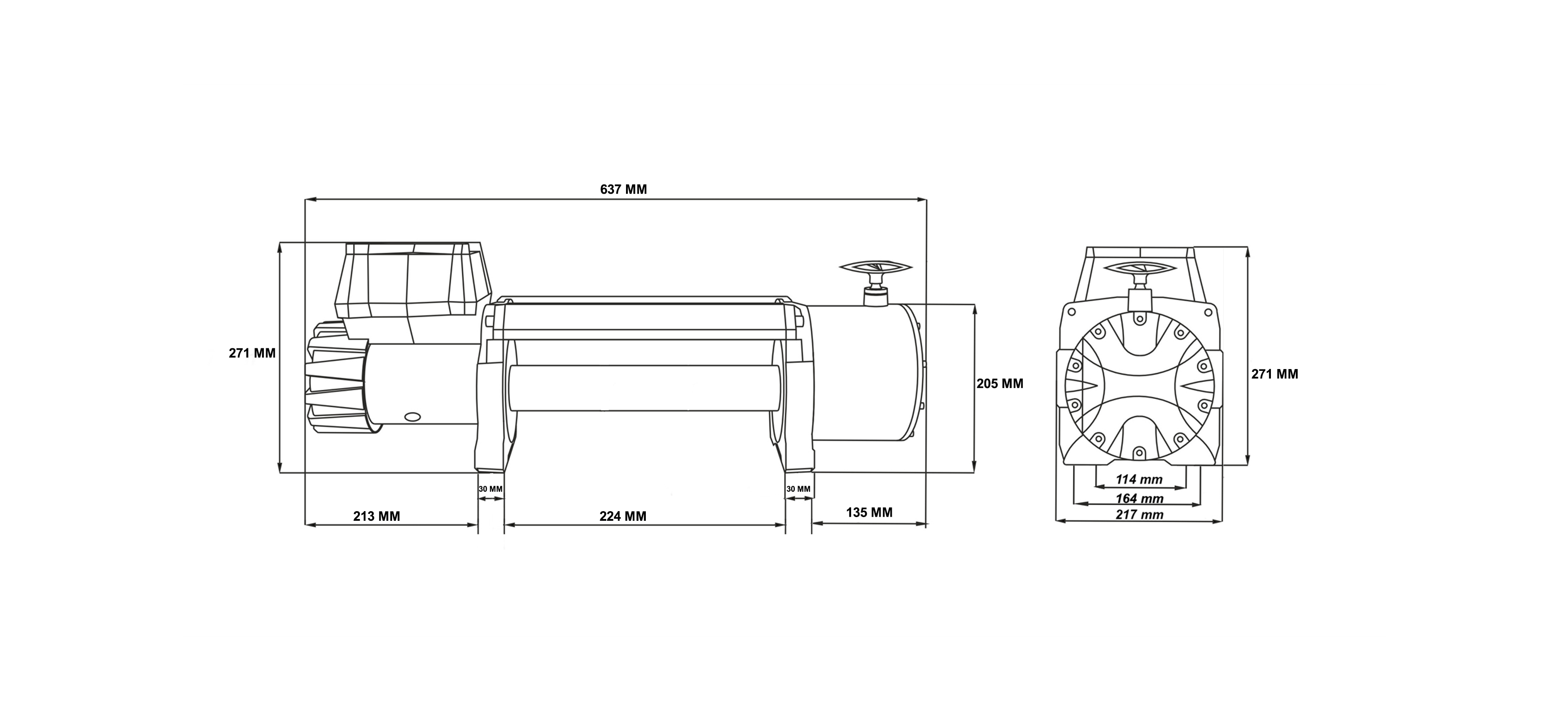

| Overall product dimensions (LxWxH): | 637 mm x 217 mm x 271 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | Kg | 2721 | 5443 | 9979 | |
| CABLE SPEED | m/min | 4,5 | 3,7 | 3,0 | 1,7 |
| POWER CONSUMPTION 24 V | amp | 42 | 112 | 232 | 305 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 9979 | 7883 | 6786 | 5887 | 4889 |
| CABLE LENGTH ON THE DRUM | m | 5,1 | 11,1 | 18,4 | 26,5 | 31,0 |

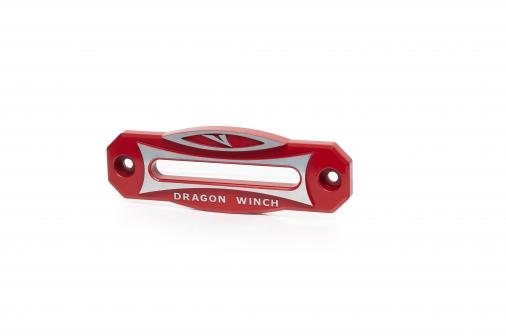

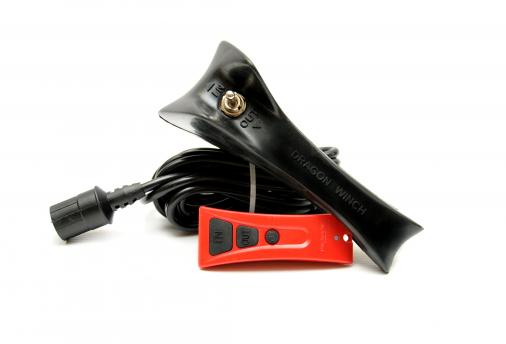

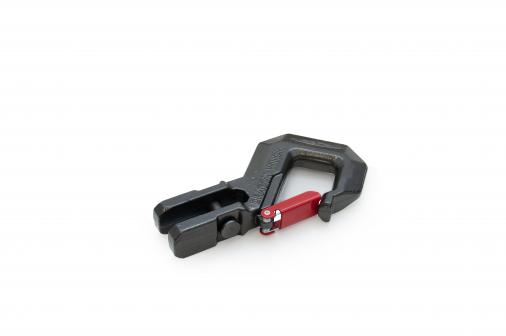

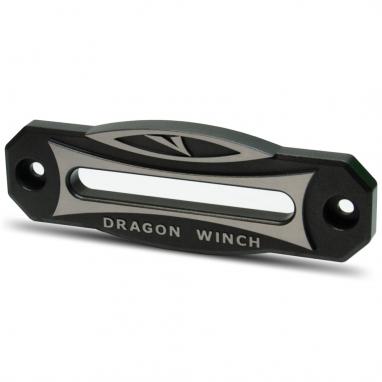

Kit components
See winch in action
