Product attributes
| Dedicated : |  |
| Voltage: | 12V |
| Motor: | 9 HP |
| Pulling rate: | 15 000 lb/ 6 803 kg |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 295:1 |
| Brake: | dynamic |
| Length of the synthetic rope: | 21 m |
| Mounting bolt patern: | 254 mm x 114 mm |

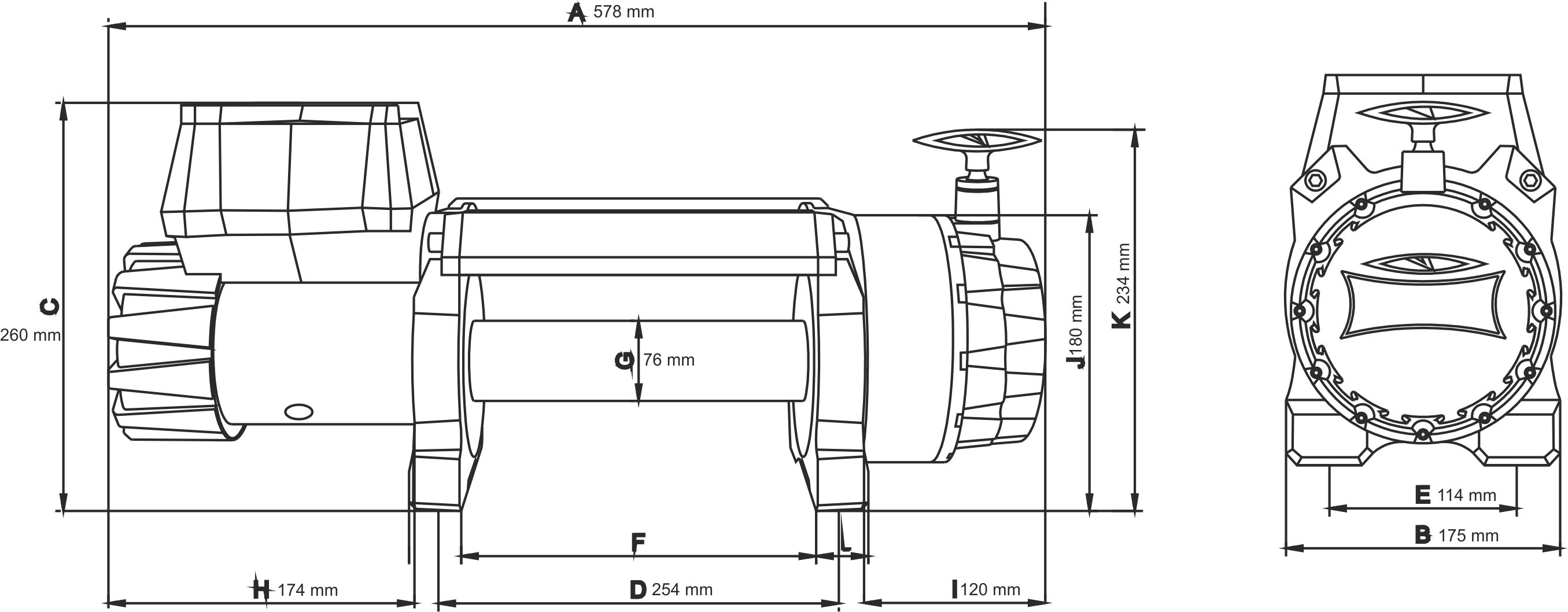

| Overall product dimensions (LxWxH): | 578 mm x 175 mm x 260 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 1814 | 3629 | 6803 |
| CABLE SPEED | m/min | 6,5 | 5,2 | 3,8 | 1,5 |
| POWER CONSUMPTION 12V | amp | 65 | 177 | 353 | 483 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 6803 | 5372 | 4626 | 4014 | 3333 |
| CABLE LENGTH ON THE DRUM | m | 5,2 | 11,0 | 18,3 | 26,6 | 28,0 |

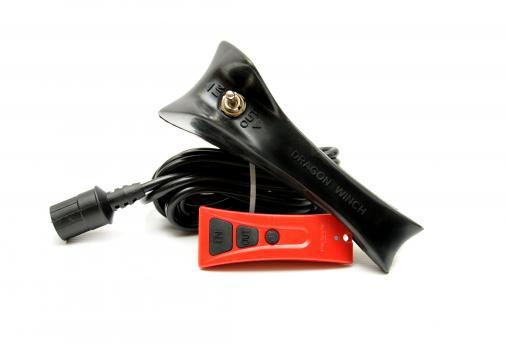

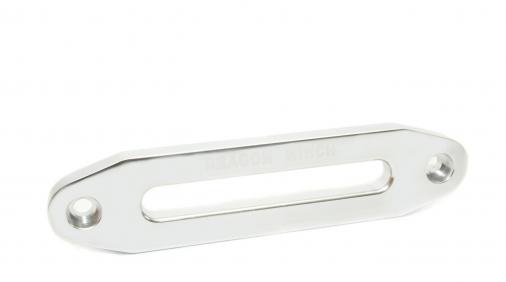

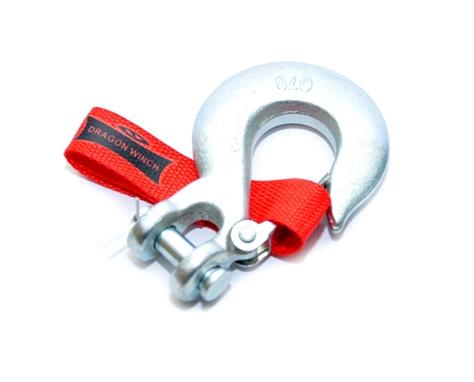

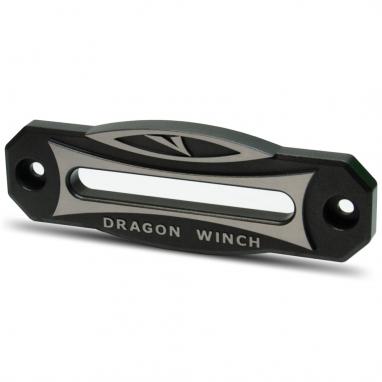

Kit components
See winch in action
