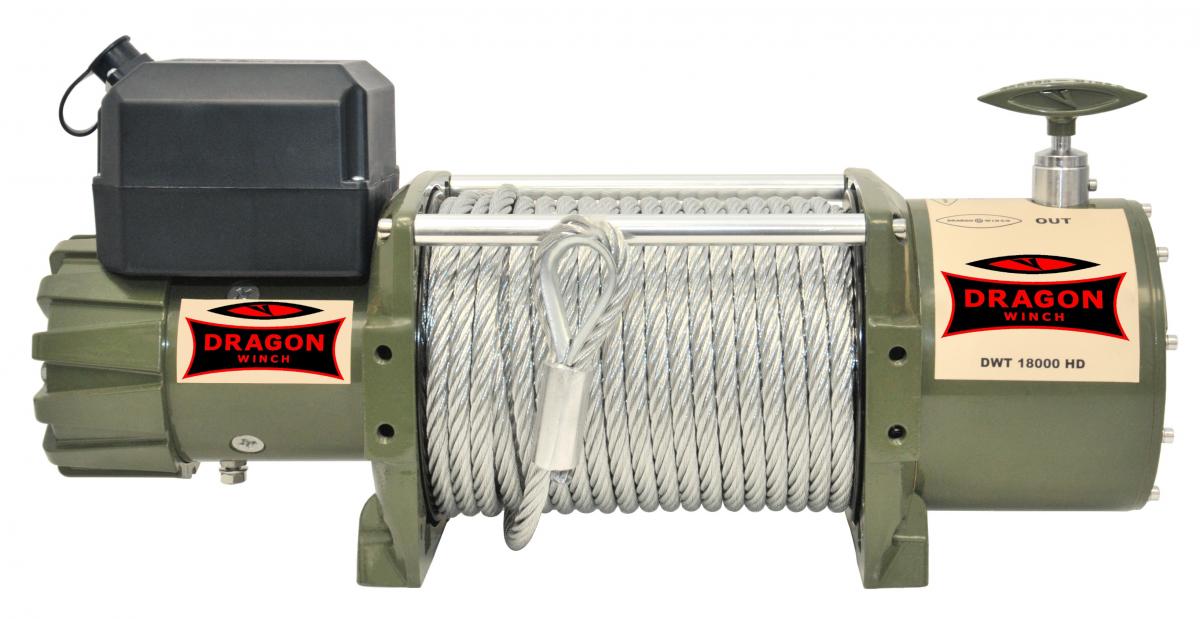

Product attributes
| Dedicated : |  ,  |
| Voltage: | 24V |
| Motor: | 9 HP |
| Pulling rate: | 18000 lb/ 8165 kg |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 358:1 |
| Brake: | dynamic |
| Length of the steel cable: | 31 m |
| Length of the synthetic rope: | 21 m |
| Weight: | 63 kg |
| Mounting bolt patern: | 254 mm x 114 mm |

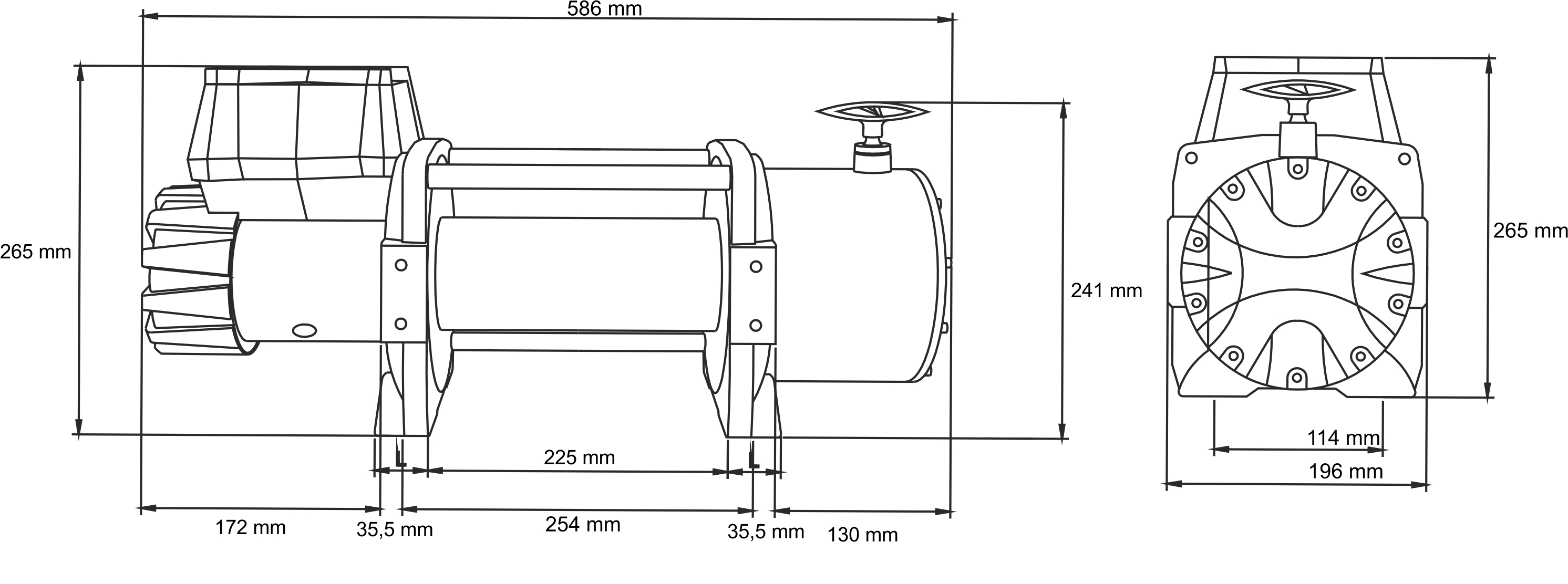

| Overall product dimensions (LxWxH): | 586 mm x 196 mm x 265 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | Kg | - | 2721 | 5443 | 8165 |
| CABLE SPEED | m/min | 5,5 | 4,1 | 3,1 | 1,5 |
| POWER CONSUMPTION 24 V | amp | 39 | 105 | 214 | 280 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 8165 | 6450 | 5552 | 4817 | 4001 |
| CABLE LENGTH ON THE DRUM | m | 5,2 | 11,4 | 19,0 | 27,8 | 31,0 |

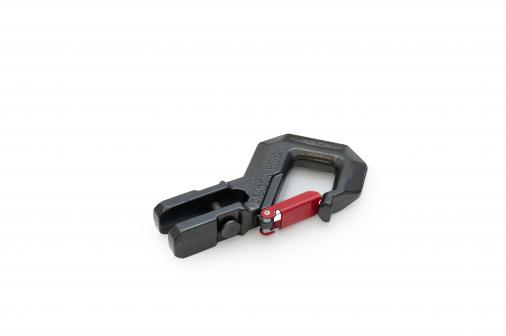

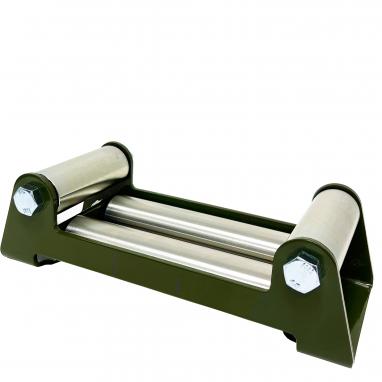

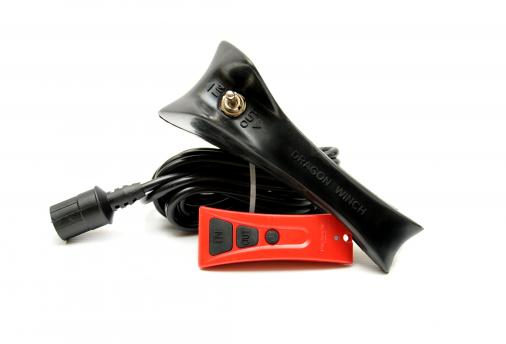

Kit components
