Product attributes
| Dedicated : |  ,  ,  |
| Voltage: | 12V/24V |
| Motor: | 7,8 HP |
| Pulling rate: | 14000 lb/ 6350 kg |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 265:1 |
| Brake: | dynamic |
| Length of the steel cable: | 20 m |
| Weight: | 40 kg |
| Mounting bolt patern: | 254 mm x 114 mm |

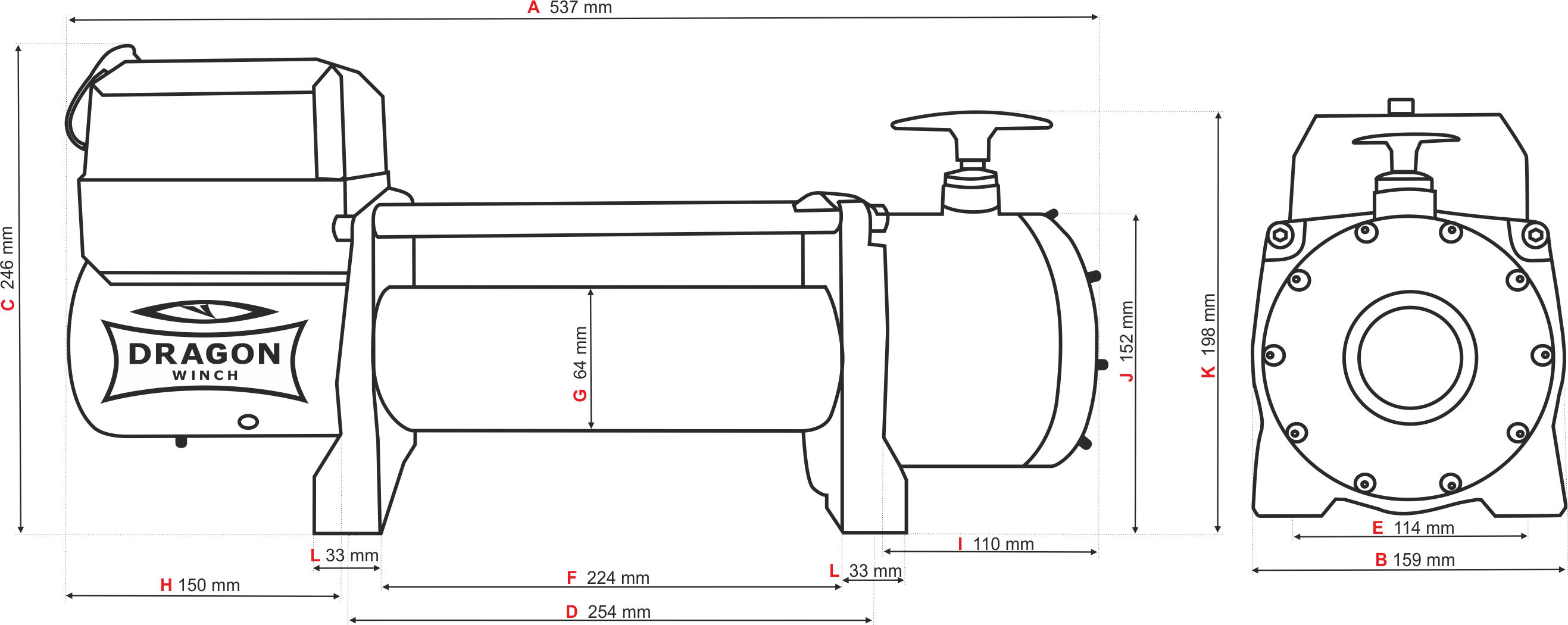

| Overall product dimensions (LxWxH): | 537 mm x 159 mm x 246 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 2721 | 5443 | 6350 |
| CABLE SPEED | m/min | 6,0 | 4,5 | 2,9 | 1,1 |
| POWER CONSUMPTION 12V | amp | 61 | 206 | 359 | 418 |
| POWER CONSUMPTION 24V | amp | 38 | 103 | 207 | 240 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | |
| CABLE PULL | kg | 6350 | 5016 | 4318 | 3746 |
| CABLE LENGTH ON THE DRUM | m | 4,8 | 10,8 | 17,5 | 20,0 |

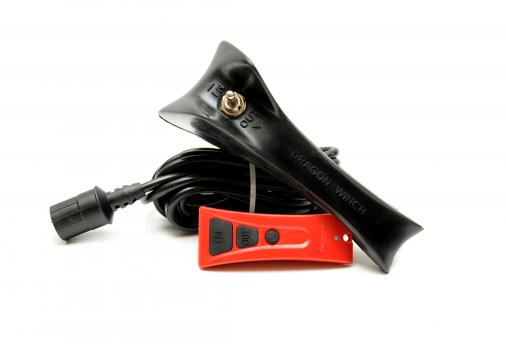

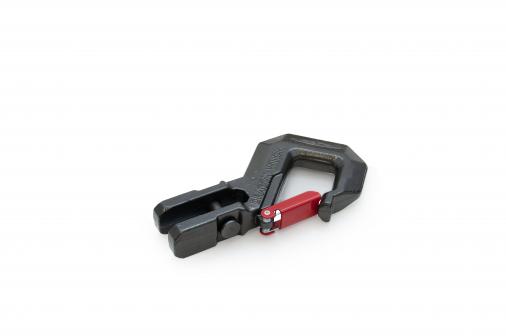

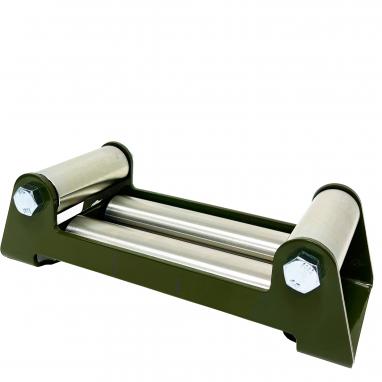

Kit components
