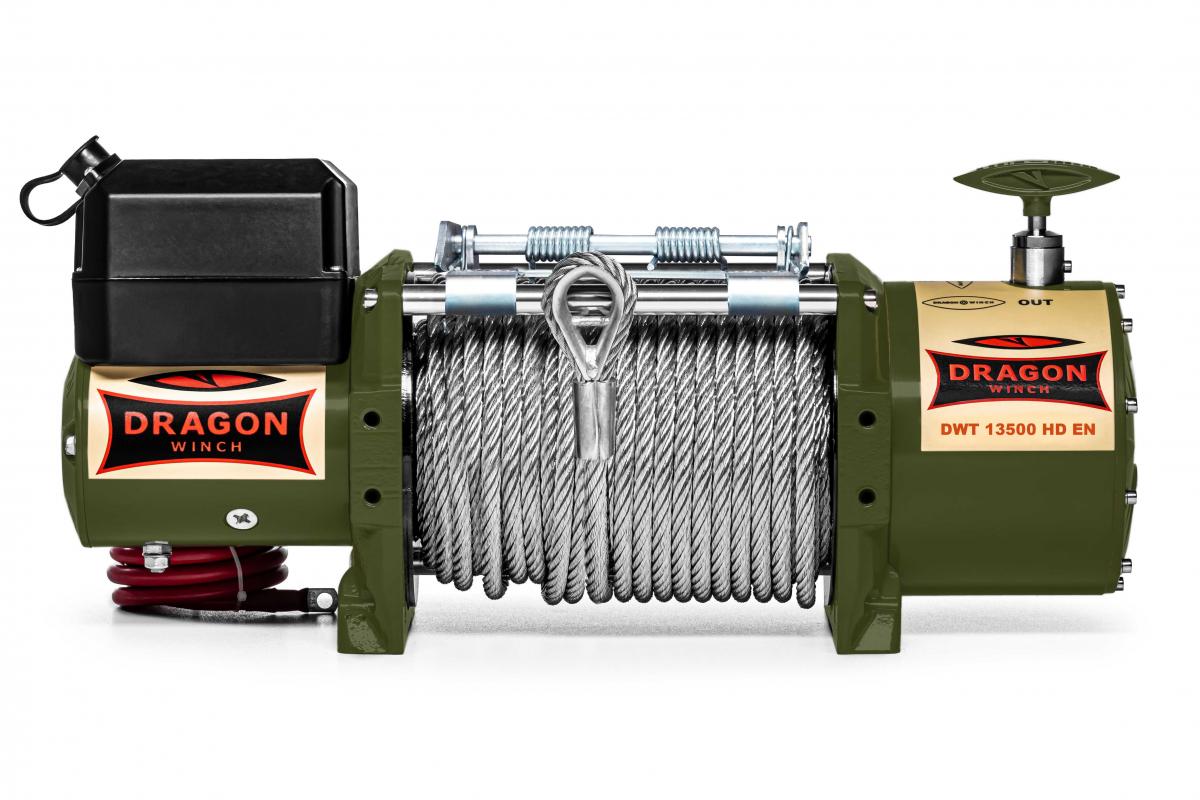

DWT 13500 HD EN 2024 z dociskaczem
Cena brutto:754.40EUR
Price:927.91EUR
Product attributes
Dedicated :fire brigade
Voltage:12V/24V
Motor:7,8 HP
Gear train:3 stage planetary
Reduction rotio:318:1
Brake:dynamic
Length of the steel cable:31 m
Mounting bolt patern:254 mm x 114 mm

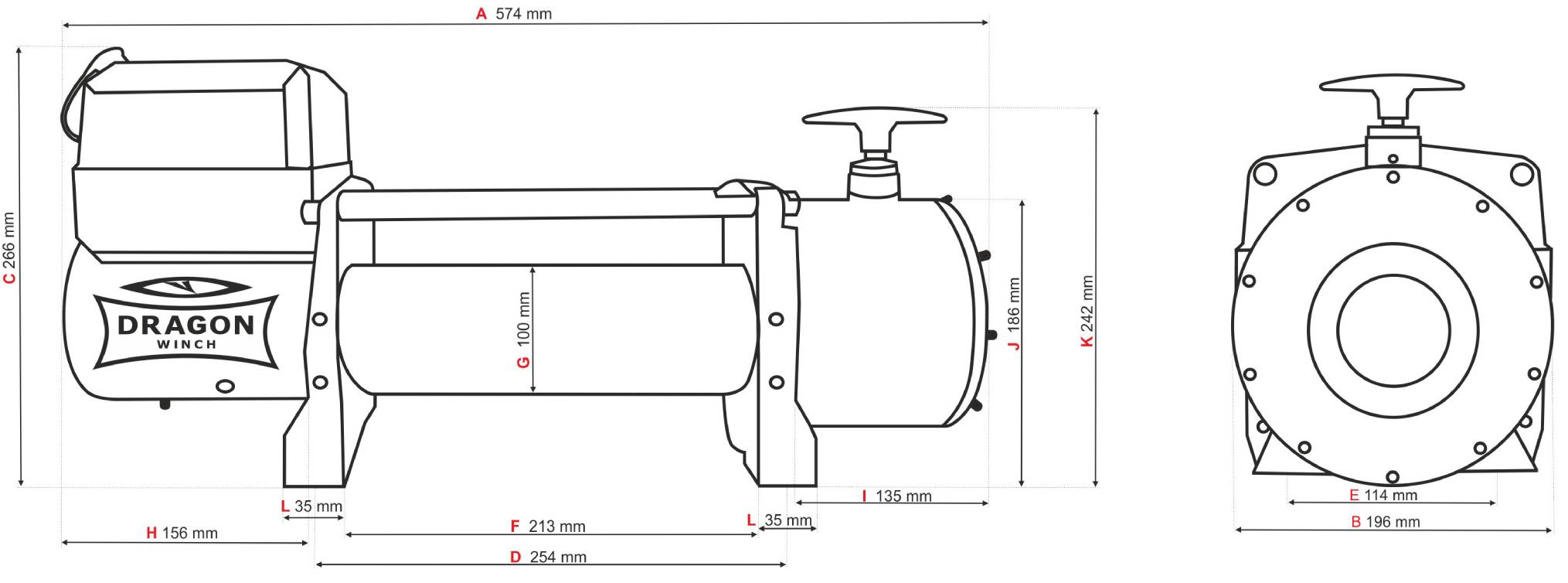

Overall product dimensions (LxWxH):574 mm x 196 mm x 266 mm
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)

CABLE LOAD kg  - 1814 3629 6123
CABLE SPEED m/min 5,7 4,4 2,0 0,8
POWER CONSUMPTION 12V amp 68 157 280 420
POWER CONSUMPTION 24V amp 40 89 157 235

PULLING FORCE DEPENDING ON CABLE LAYER
CABLE LAYER   1 2 3 4
CABLE PULL kg 6123 4837 4163 3613
CABLE LENGTH ON THE DRUM m 4,8 12,0 21,0 31,0

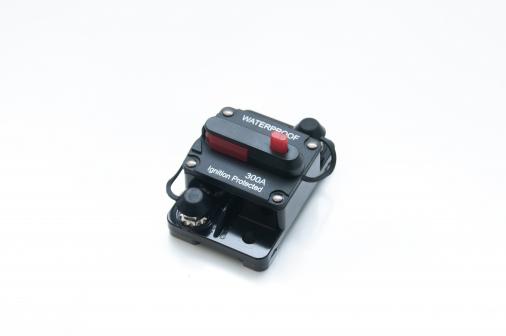

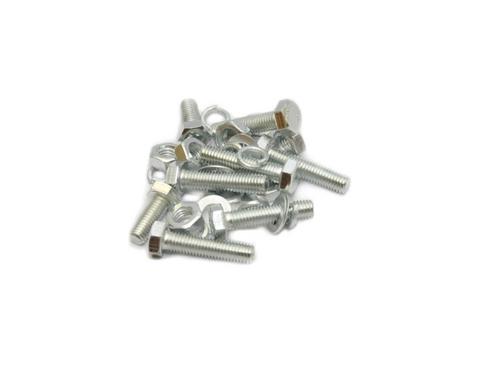

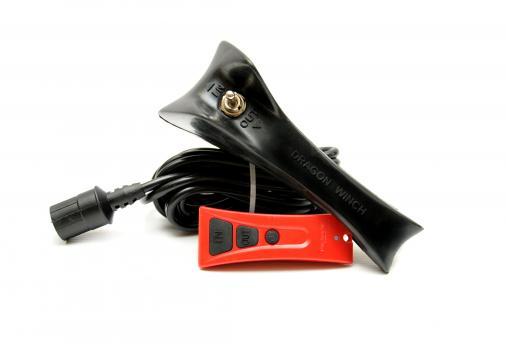

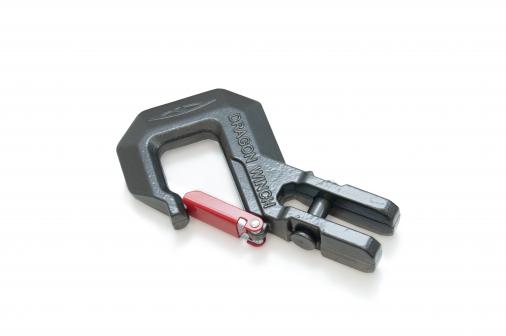

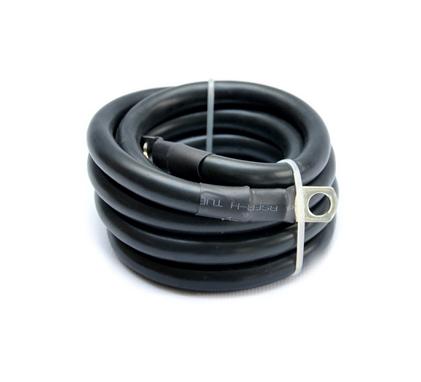

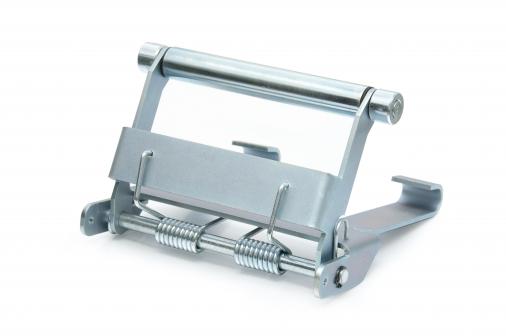

Kit components
  • DWT 13500 HD EN
  • DWT 13500 HD EN
  • DWT 13500 HD EN
  • DWT 13500 HD EN
  • DWT 13500 HD EN
  • DWT 13500 HD EN
  • DWT 13500 HD EN
  • DWT 13500 HD EN
