DWT 12500 HD EN 2024 z dociskaczem
Cena brutto:754.40EUR
Price:927.91EUR
Product attributes
Dedicated :fire brigade
Voltage:12V/24V
Motor:7,8 HP
Pulling rate:12500 lb/5668 kg
Gear train:3 stage planetary
Reduction rotio:318:1
Brake:dynamic
Length of the steel cable:31 m
Weight:55 kg
Mounting bolt patern:254 mm x 114 mm

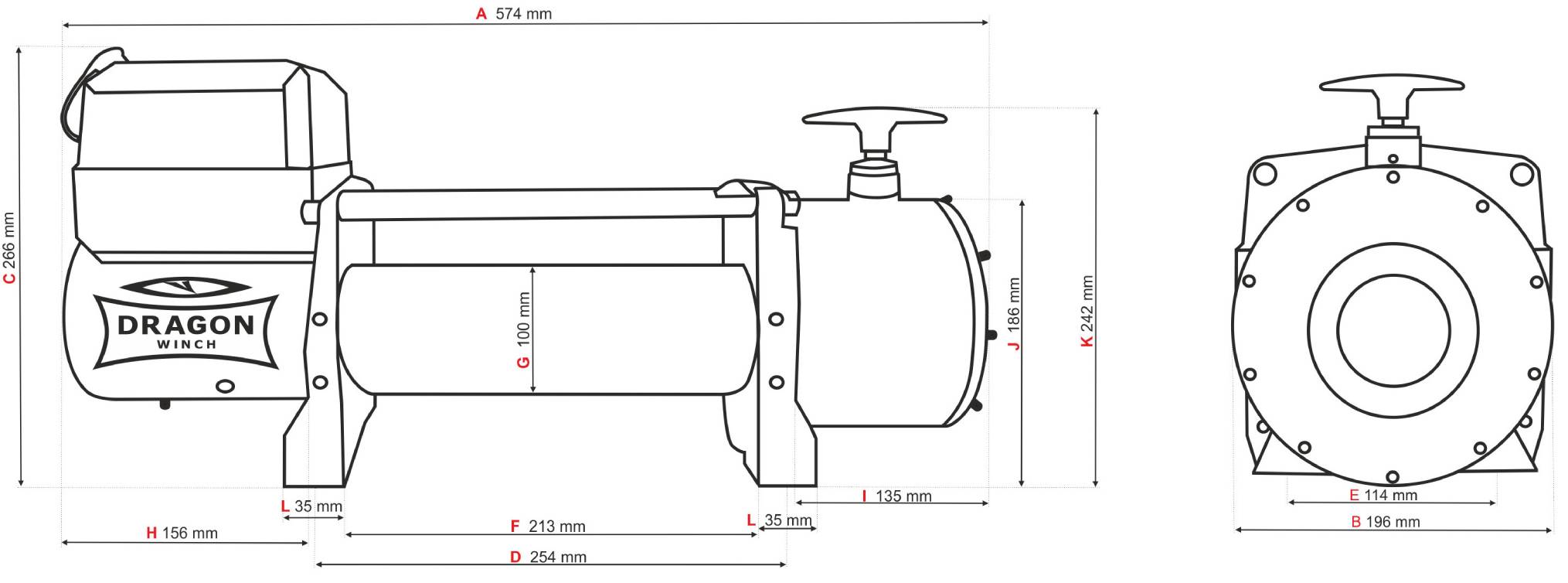

Overall product dimensions (LxWxH):574 mm x 196 mm x 266 mm
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)

CABLE LOAD kg 1814 3629 5668
CABLE SPEED m/min 5,7 4,4 2,0 1,0
POWER CONSUMPTION 12V amp 68 157 280 385
POWER CONSUMPTION 24V amp 40 89 157 213

PULLING FORCE DEPENDING ON CABLE LAYER
CABLE LAYER   1 2 3 4
CABLE PULL kg 5668 4477 3854 3344
CABLE LENGTH ON THE DRUM m 4,8 12,0 21,0 31,0

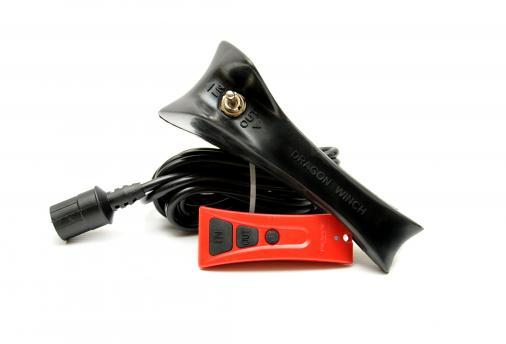

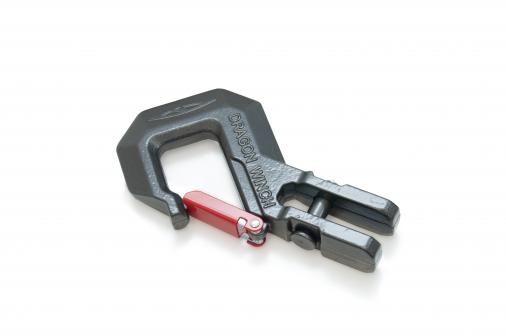

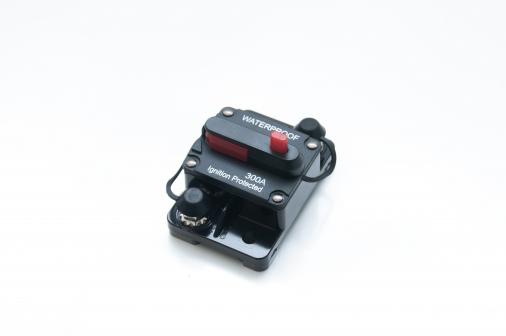

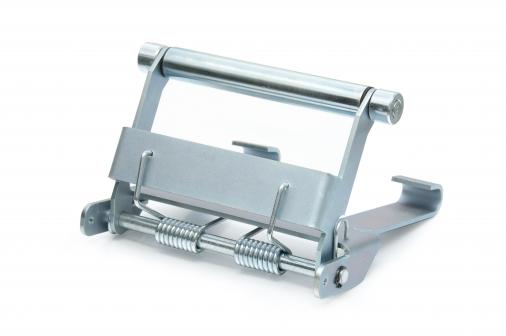

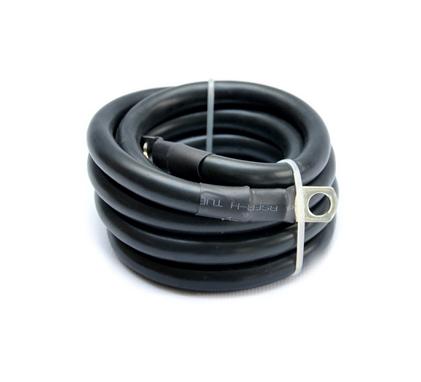

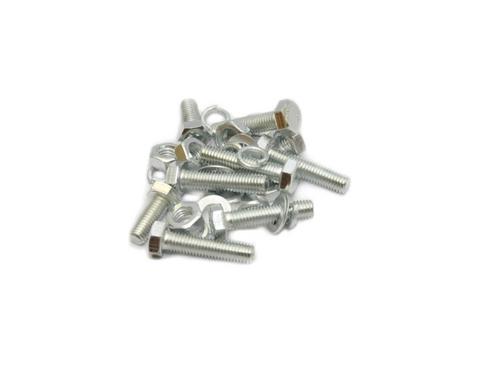

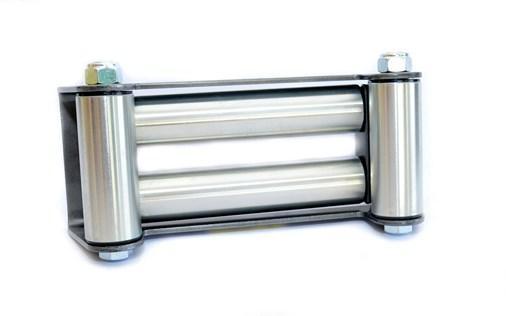

Kit components
  • DWT 12500 HD EN
  • DWT 12500 HD EN
  • DWT 12500 HD EN
  • DWT 12500 HD EN
  • DWT 12500 HD EN
  • DWT 12500 HD EN
  • DWT 12500 HD EN
  • DWT 12500 HD EN
