Product attributes
| Dedicated : |  ,  |
| Voltage: | 12V |
| Motor: | 0,9 HP |
| Pulling rate: | 2000 lb/ 907kg |
| Reduction rotio: | 153:1 |
| Brake: | self-brake |
| Length of the steel cable: | 10 m |
| Weight: | 5,8 kg |

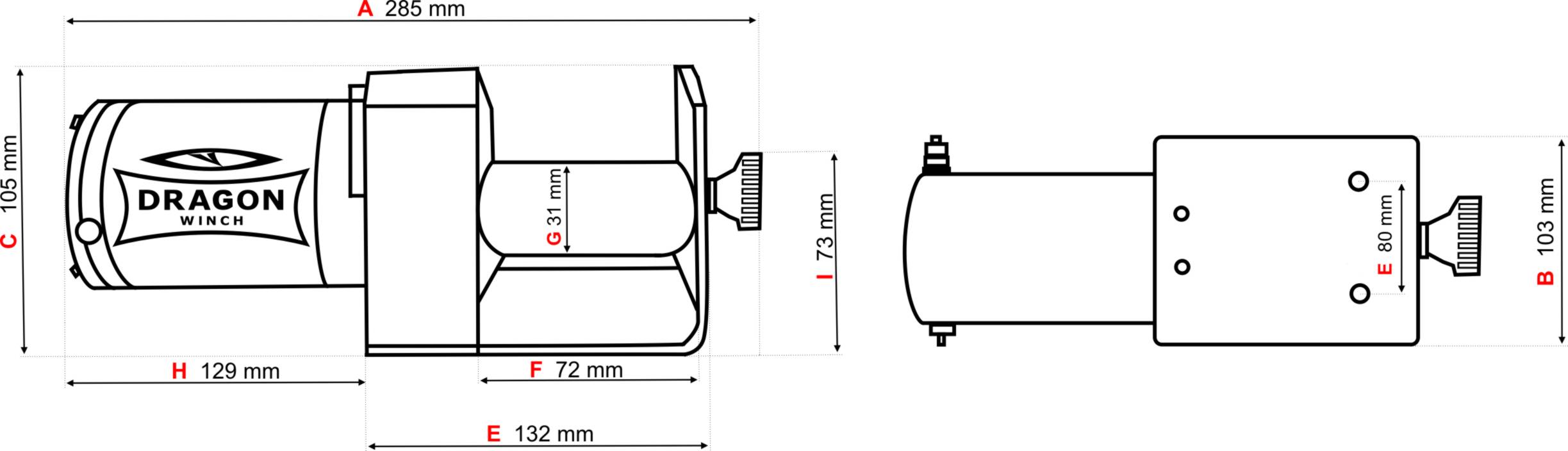

| Overall product dimensions (LxWxH): | 280 mm x 100 mm x 100 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| Cable load | kg | brak | 453 | 907 |
| Cable speed | m/min | 3,5 | 2,4 | 1 |
| Power consumption 12 V | amp | 11 | 53 | 95 |
PULLING FORCE DEPENDING ON CABLE LAYER
| Cable layer | 1 | 2 | 3 | 4 | 5 | |
| Cable pull | kg | 907 | 716 | 617 | 535 | 444 |
| Cable length on the drum | m | 1,8 | 3,8 | 6,2 | 8,9 | 10 |

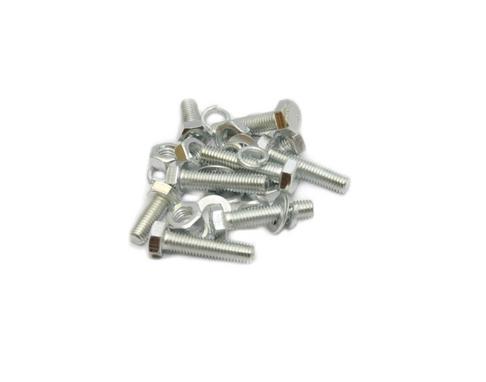

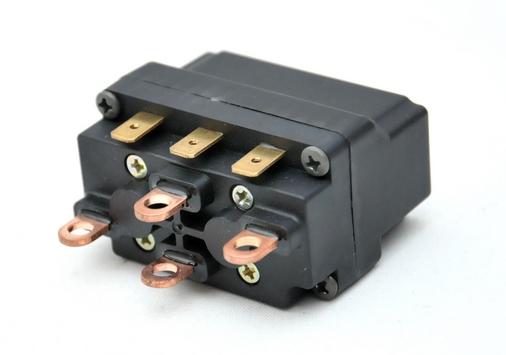

Kit components
