Product attributes
| Dedicated : |  ,  |
| Voltage: | 12V |
| Motor: | 6,8 HP |
| Pulling rate: | 13000 lb/ 5897 kg |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 265:1 |
| Brake: | dynamic |
| Length of the steel cable: | 20 m |
| Mounting bolt patern: | 254 mm x 114 mm |

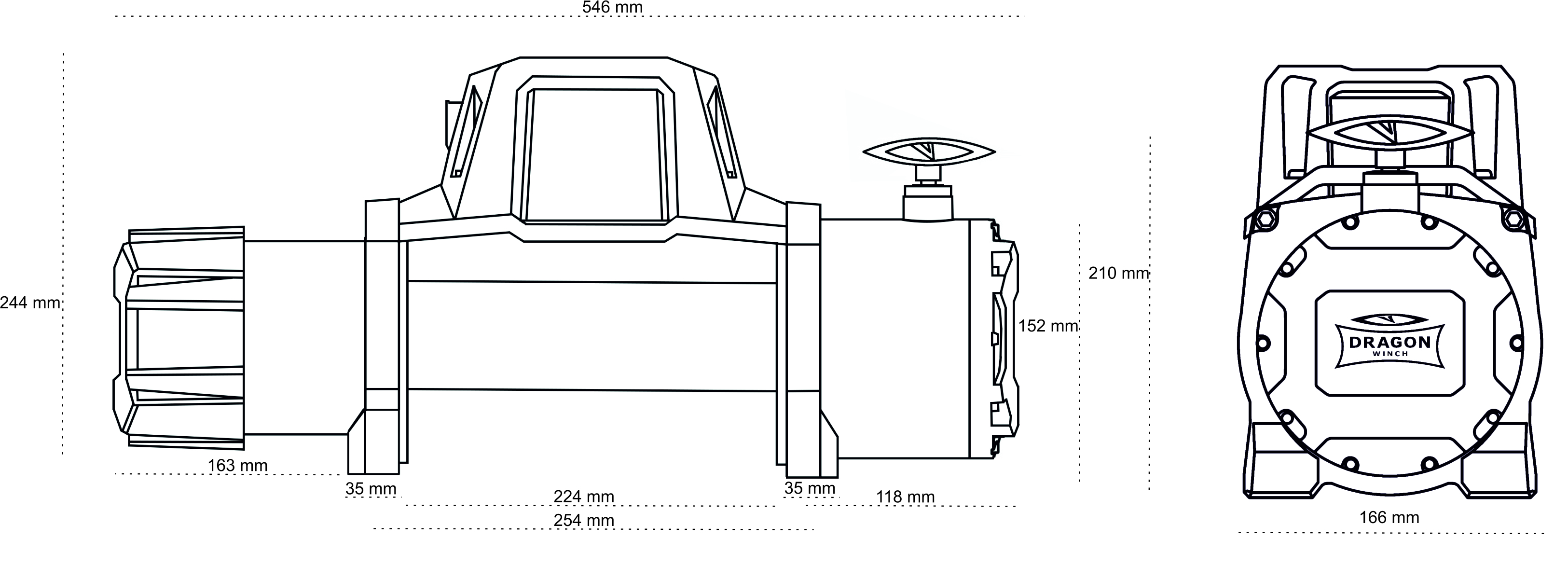

| Overall product dimensions (LxWxH): | 546 mm x 166 mm x 244 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION ( THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 1814 | 3629 | 5897 |
| CABLE SPEED | m/min | 5,9 | 4,4 | 2,8 | 0,8 |
| POWER CONSUMPTION 12V | ampery | 58 | 158 | 314 | 448 |
| POWER CONSUMPTION 24V | ampery | 35 | 89 | 178 | 245 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE SPEED | kg | 5897 | 4658 | 4009 | 3463 | 2889 |
| CABLE LENGTH ON THE DRUM | m | 4,9 | 11,0 | 17,8 | 26,0 | 30,0 |

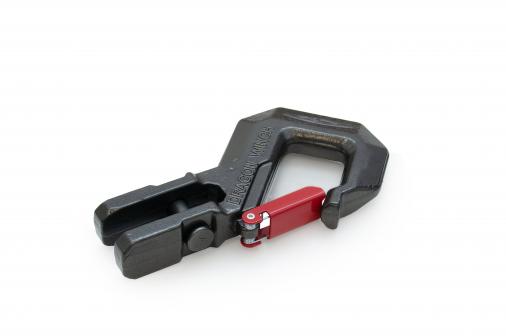

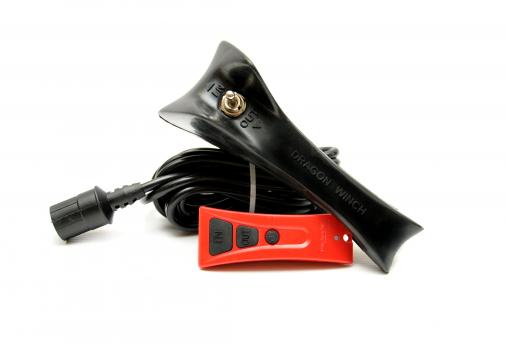

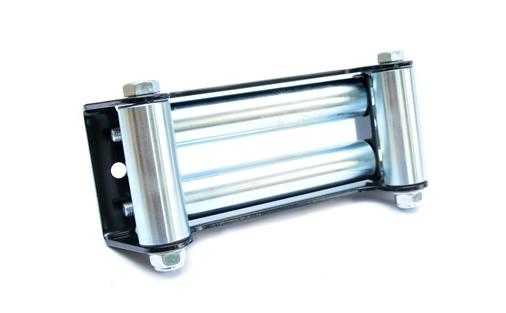

Kit components
