Product attributes
| Dedicated : |  ,  |
| Pulling rate: | 55 000 lb/ 24 948 kg |
| Max.pressure of oil: | 18 Mpa |
| Capacity of the drum: | 47 m |
| Voltage: | hydraulic |
| Speed of the rope: | 4,7 m/min |
| Pressure of oil: | 18/180 MPa/Bar |
| Oil flow: | 80 l/min |
| Diameter of the wire rope: | 25 mm |
| Overall size: | 764 mm x 660 mm x 570 mm |

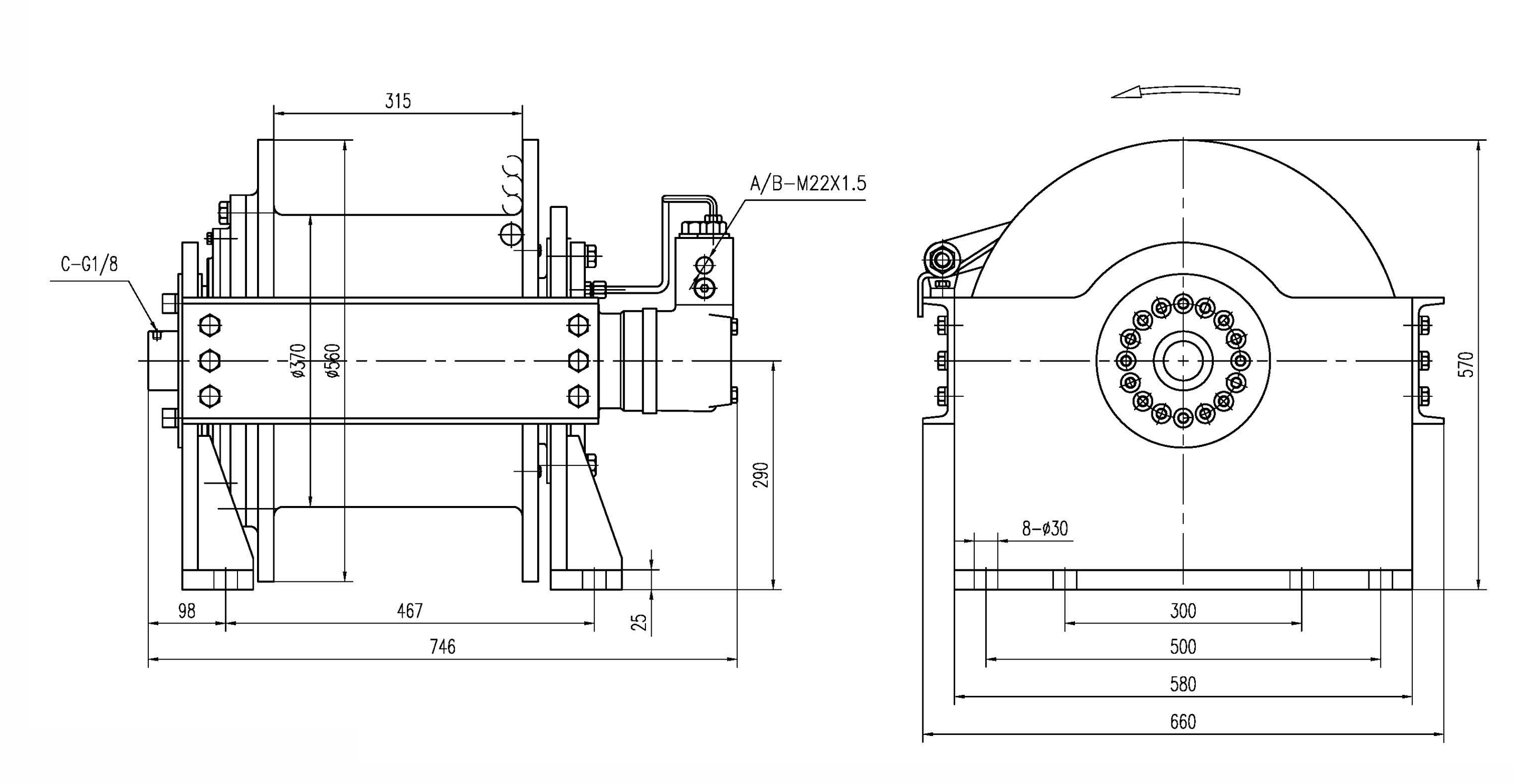

Technical chart
