Product attributes
| Dedicated : |  ,  |
| Voltage: | hydraulic |
| Pulling rate: | 20000 lb/ 9072 kg |
| Weight: | 72 kg |
| Max.pressure of oil: | 17,5 Mpa |
| Max.oil flow: | 60 l/min |
| Capacity of the drum: | 31 m |
| Diameter of the wire rope: | 11 mm |
| Number of rope layers: | 4 |

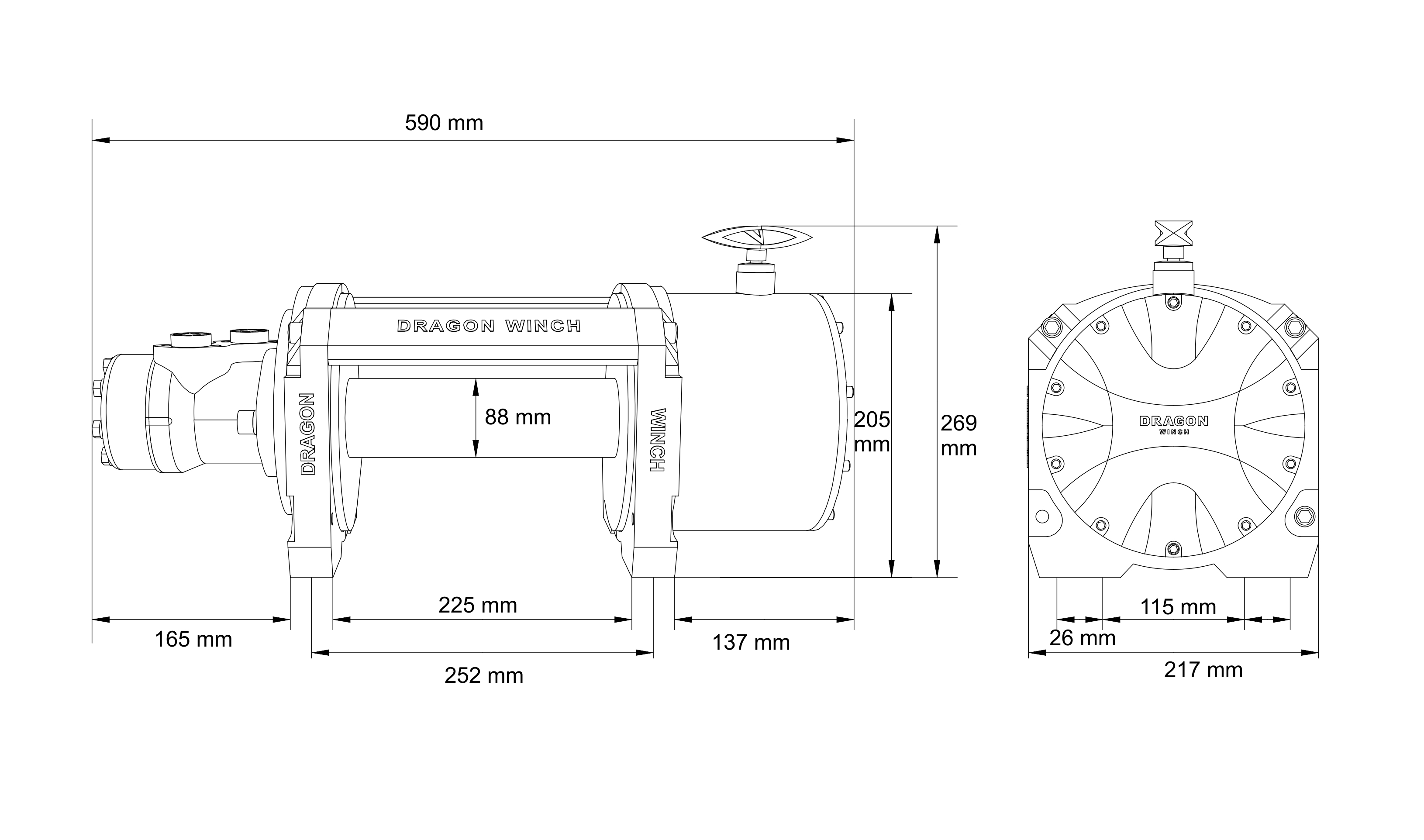

| Overall product dimensions (LxWxH): | 590mmx269mmx217mm |
Pulling force depending on cable layer:
first layer of cable: 9072 kg
last layer of cable: 6187 kg
Cable winding speed:
first layer of cable: 4,2 m/min
last layer of cable: 5,6 m/min
first layer of cable: 9072 kg
last layer of cable: 6187 kg
Cable winding speed:
first layer of cable: 4,2 m/min
last layer of cable: 5,6 m/min

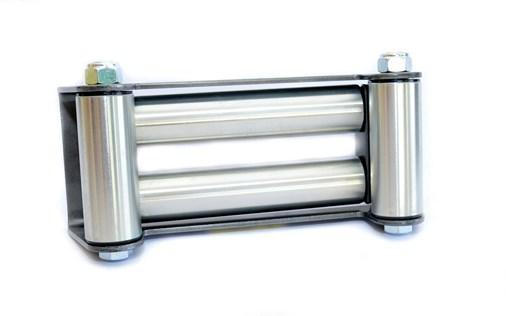

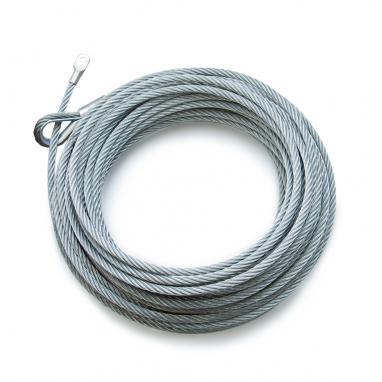

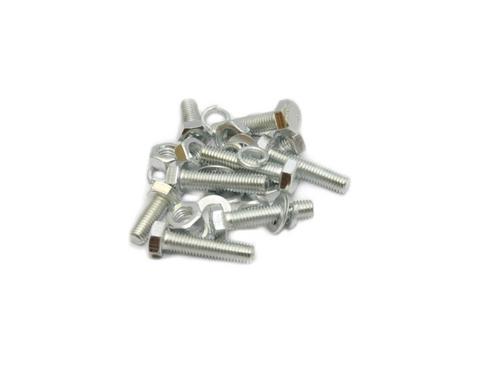

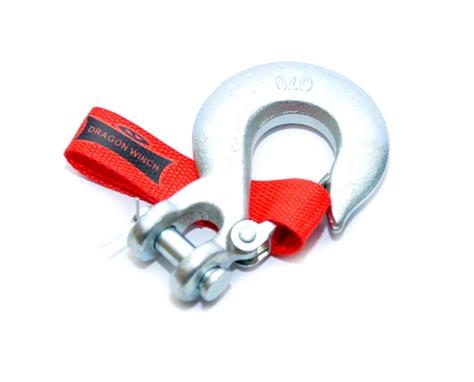

Kit components
