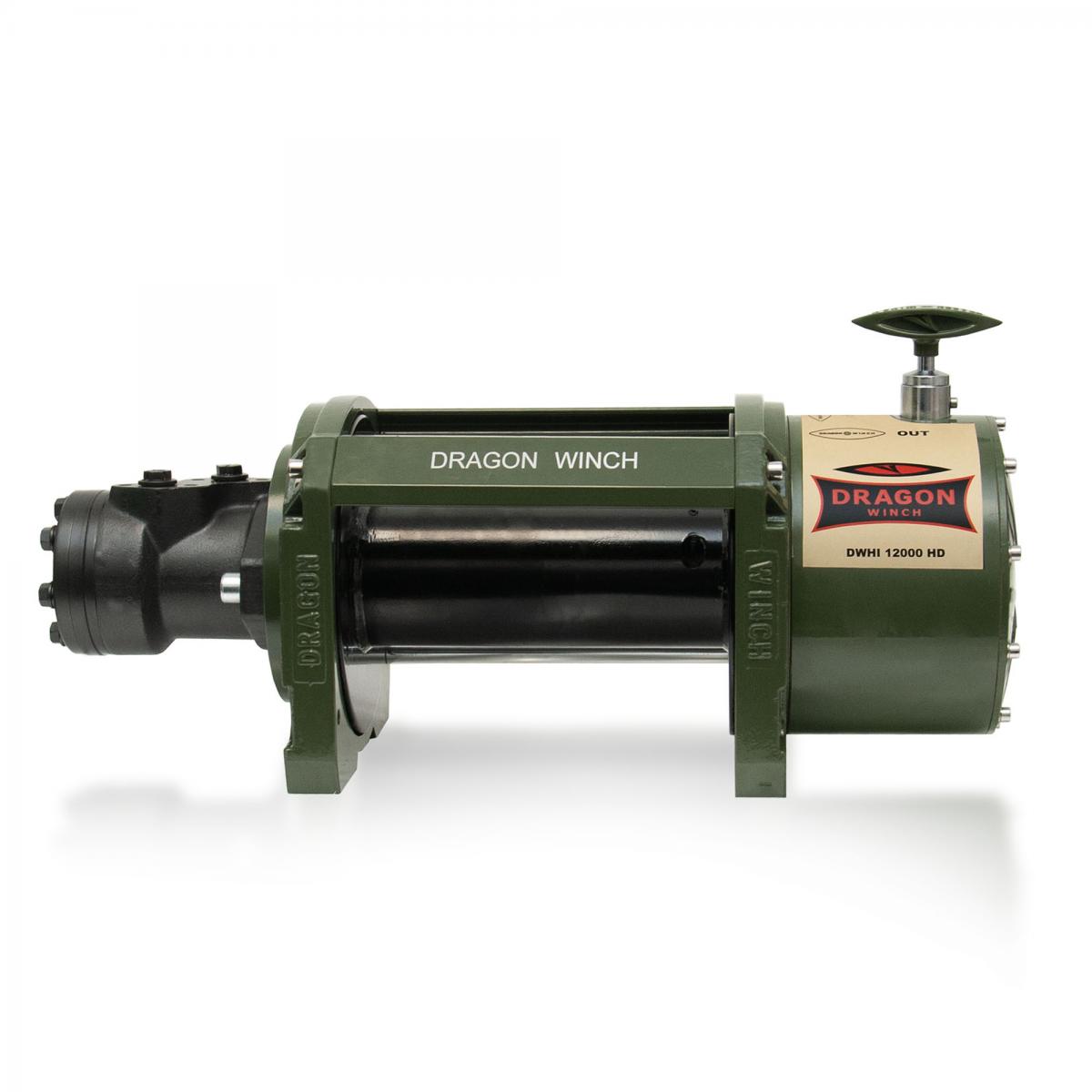

Product attributes
| Dedicated : |  ,  |
| Pulling rate: | 12000 lb/5443 kg |
| Max.pressure of oil: | 16 Mpa |
| Max.oil flow: | 40 l/m |
| Capacity of the drum: | max 45 m |
| Weight: | 55 kg |
| Diameter of the wire rope: | 10 mm |
| Number of rope layers: | max 5 |

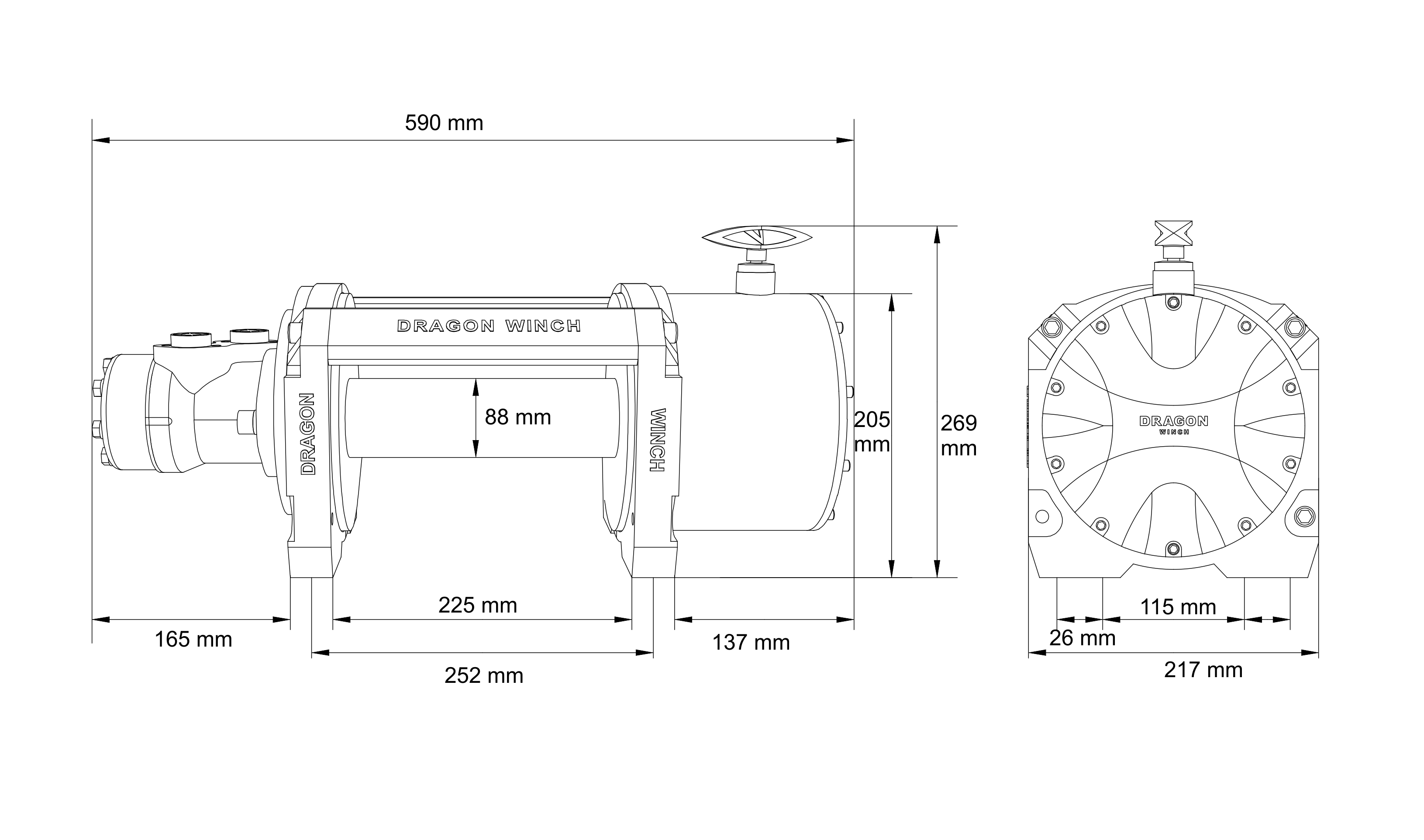

| Overall product dimensions (LxWxH): | 590mmx269mmx217mm |
Pulling force depending on cable layer:
first layer of cable: 5443 kg
last layer of cable: 2851 kg
Cable winding speed:
first layer of cable: 4,4 m/min
last layer of cable: 6,8 m/min
first layer of cable: 5443 kg
last layer of cable: 2851 kg
Cable winding speed:
first layer of cable: 4,4 m/min
last layer of cable: 6,8 m/min

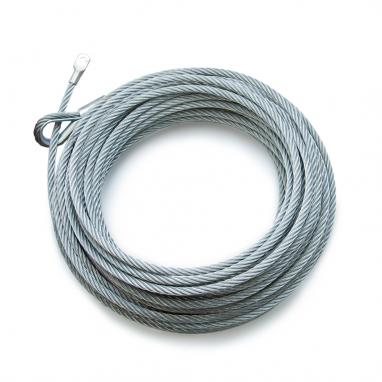

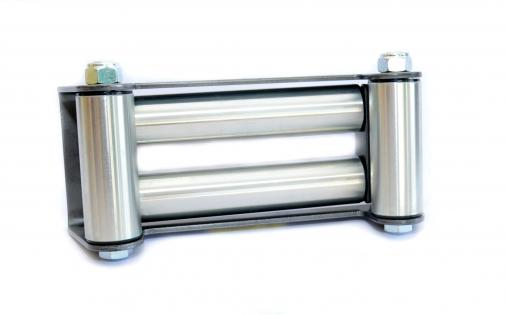

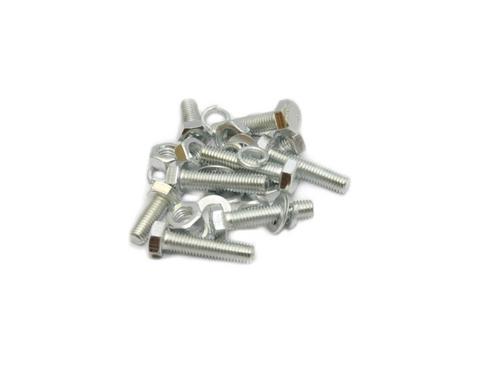

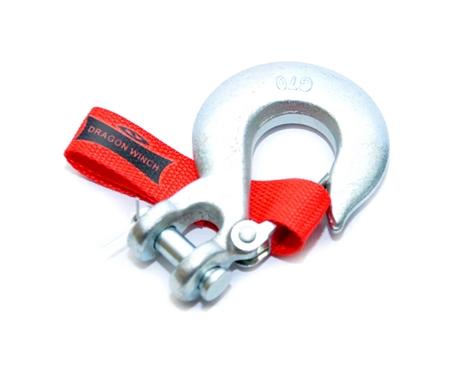

Kit components
