Product attributes
| Dedicated : |  |
| Voltage: | 12V |

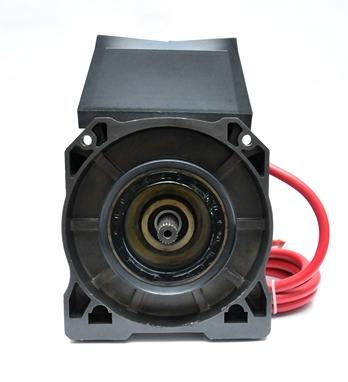

| Motor: | 9 HP |
| Pulling rate: | 9000 lb/ 4082 kg |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 138:1 |
| Brake: | dynamic |
| Length of the steel cable: | 28 m |
| Length of the synthetic rope: | 30 m |
| Weight: | 46 kg |
| Mounting bolt patern: | 254 mm x 114 mm |

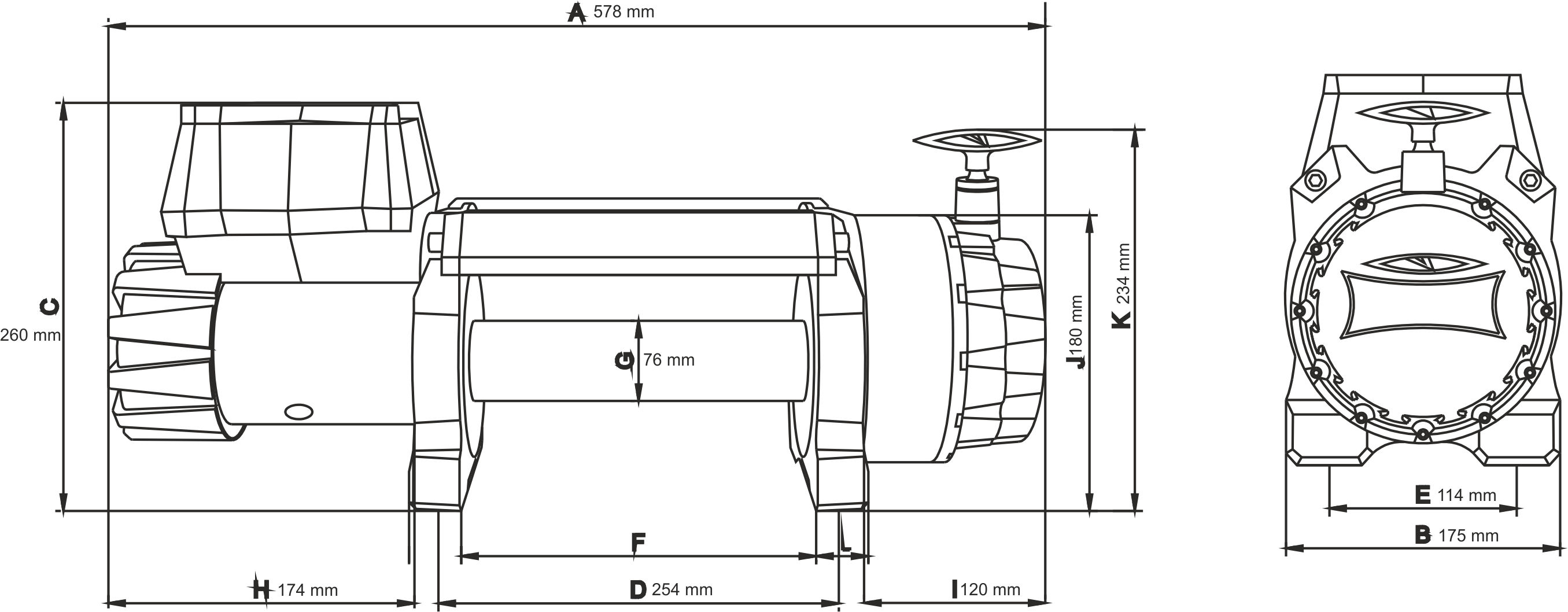

| Overall product dimensions (LxWxH): | 578 mm x 175 mm x 260 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLELOAD | kg | - | 1814 | 3629 | 4082 |
| CABLE SPEED | m/min | 10,9 | 8,8 | 6,2 | 5,4 |
| POWER CONSUMPTION 12 V | Amp | 70 | 211 | 422 | 480 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | |
| CABLE PULL | kg | 4082 | 3225 | 2776 | 2408 |
| CABLE LENGTH ON THE DRUM | m | 6,2 | 13,8 | 22,0 | 28,0 |

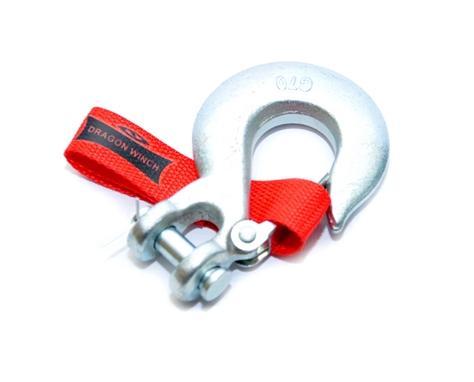

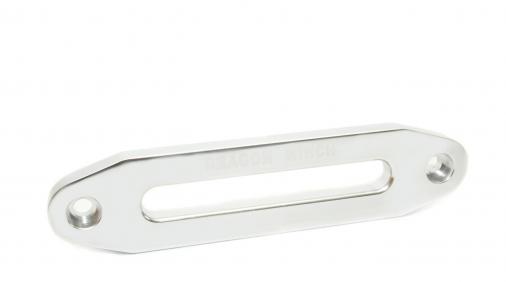

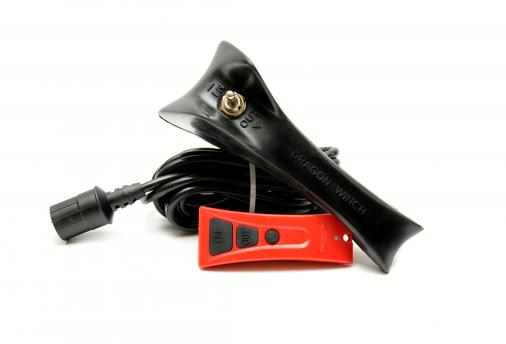

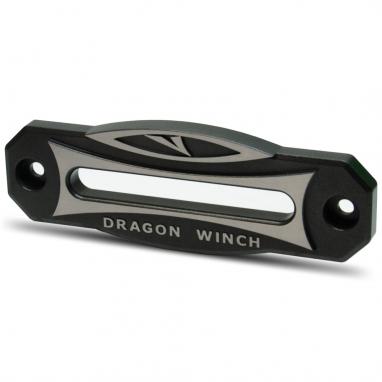

Kit components
