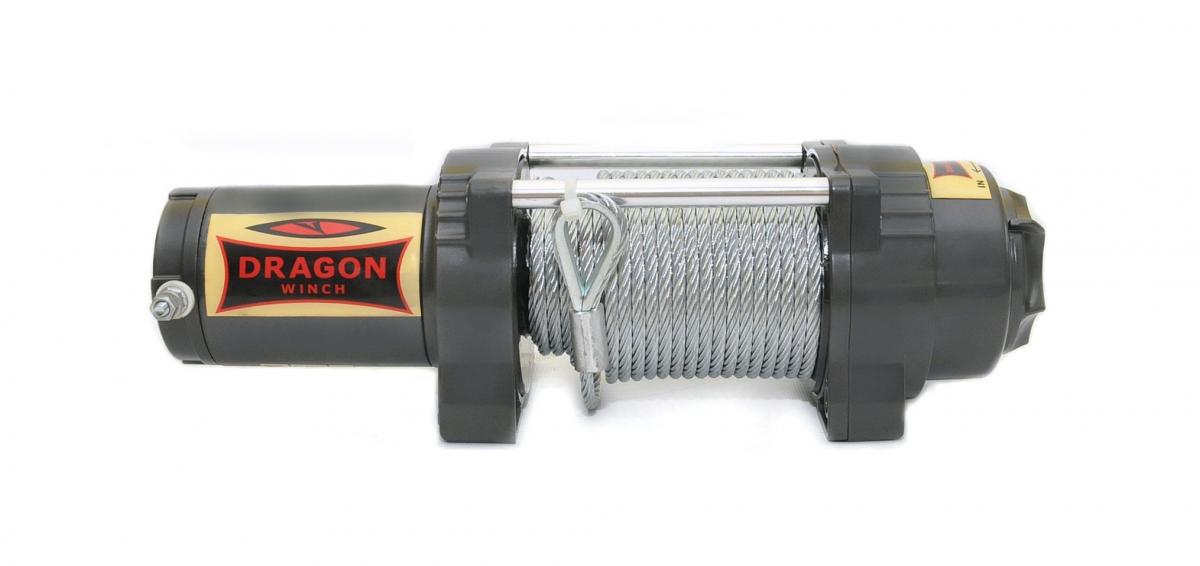

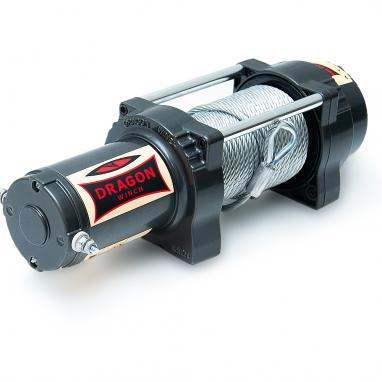

Product attributes
| Dedicated : |  |
| Voltage: | 12V |
| Motor: | 1,9 HP |
| Pulling rate: | 4500 lb/ 2041 kg |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 138:1 |
| Brake: | automatic |
| Weight: | 14 kg |
| Mounting bolt patern: | 168 mm x 76 mm |

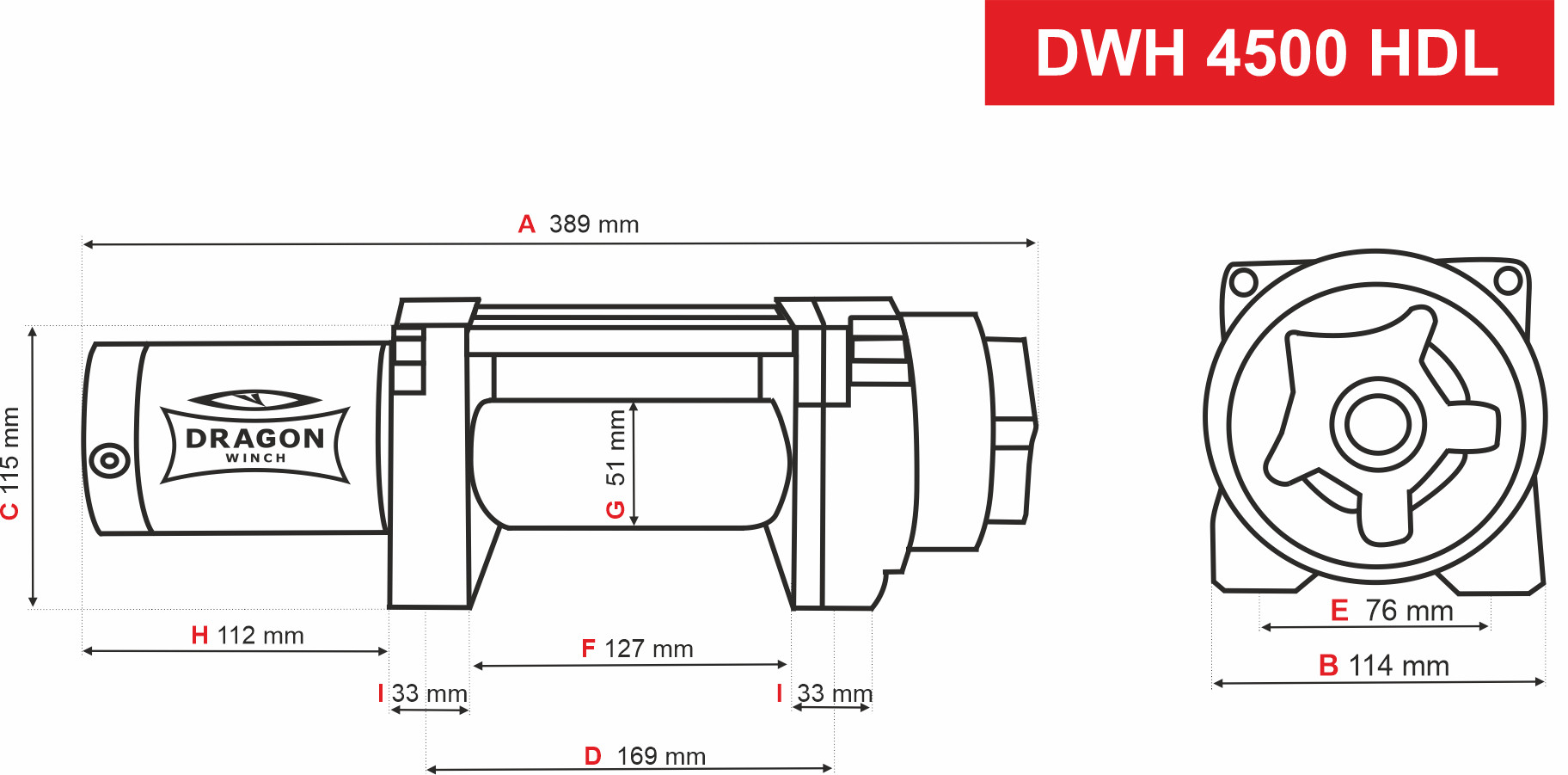

| Overall product dimensions (LxWxH): | 386 mm x 114 mm x115 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 453 | 907 | 2041 |
| CABLE SPEED | m/min | 6,3 | 5,3 | 4,5 | 2,1 |
| POWER CONSUMPTION 12V | amp | 23 | 40 | 81 | 160 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 2041 | 1612 | 1388 | 1204 | 1001 |
| CABLE LENGTH ON THE DRUM | m | 3,7 | 8,1 | 12,9 | 18,3 | 20,0 |

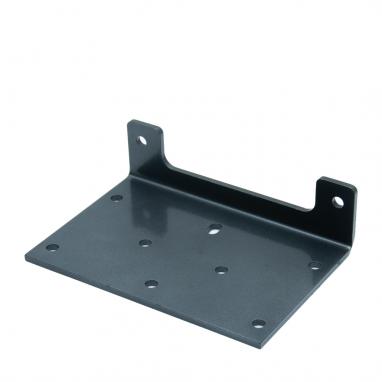

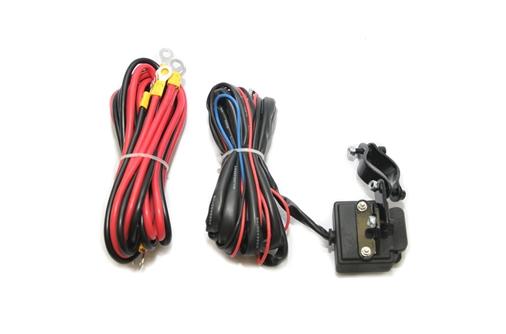

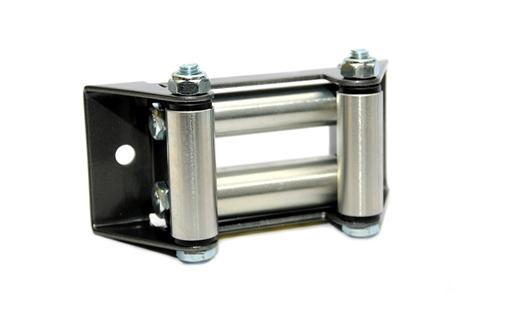

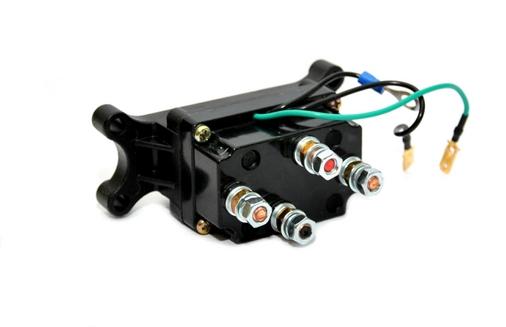

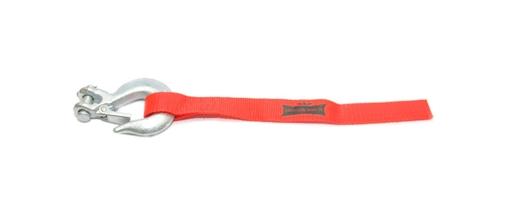

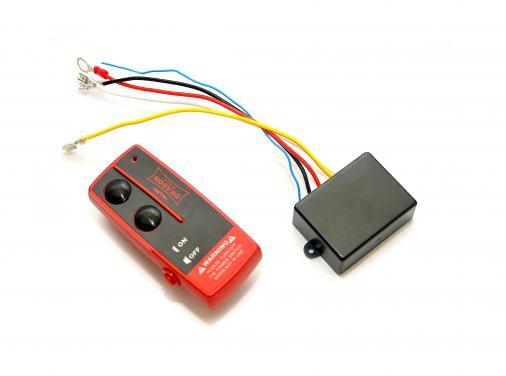

Kit components
