Product attributes
| Dedicated : |  |
| Voltage: | 12V |
| Motor: | 1,6 HP |
| Pulling rate: | 3500 lb/ 1588 kg |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 138:1 |
| Brake: | automatic |
| Length of the steel cable: | 15 m |
| Length of the synthetic rope: | 15 m |
| Weight: | 12 kg |

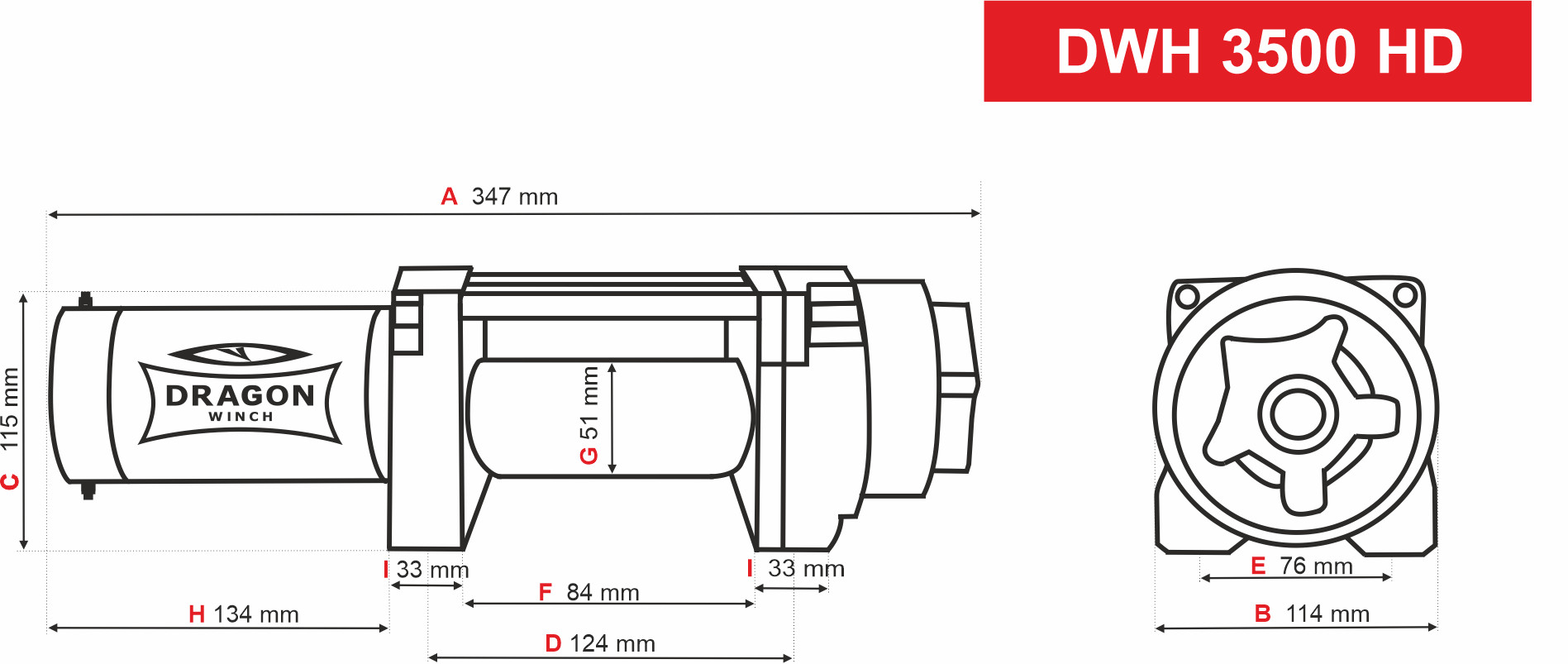

| Mounting bolt patern: | 124 mm x 76 mm |
| Overall product dimensions (LxWxH): | 354 mm x 114 mm x115 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 453 | 907 | 1587 |
| CABLE SPEED | m/min | 5,4 | 4,8 | 4,0 | 3,0 |
| POWER CONSUMPTION 12V | amp | 19 | 49 | 96 | 150 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 1587 | 1254 | 1079 | 967 | 778 |
| CABLE LENGTH ON THE DRUM | m | 2,5 | 5,3 | 8,4 | 12,2 | 15,0 |

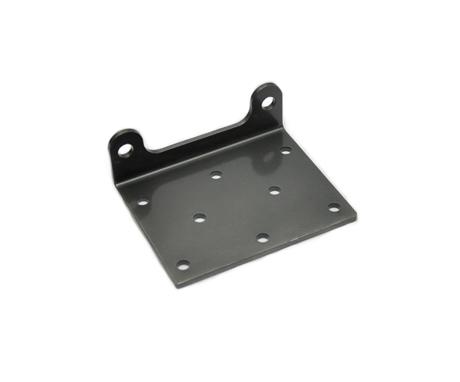

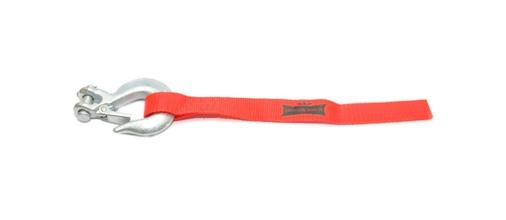

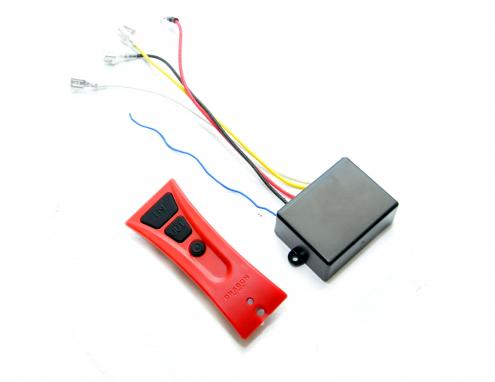

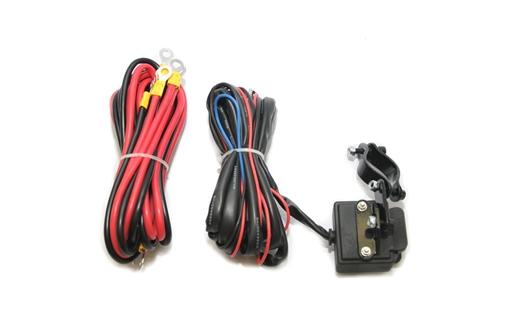

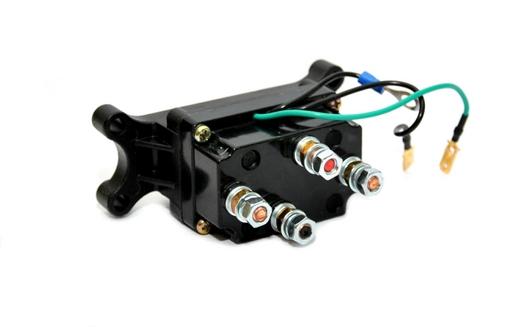

Kit components
