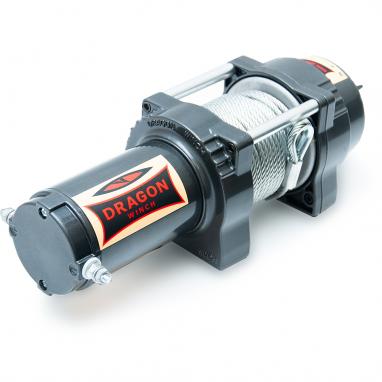

Product attributes
| Dedicated : |  |
| Voltage: | 12V |
| Motor: | 1,6 HP |
| Gear train: | 3 stage planetary |
| Reduction rotio: | 138:1 |
| Brake: | automatic |
| Length of the steel cable: | 15 m |

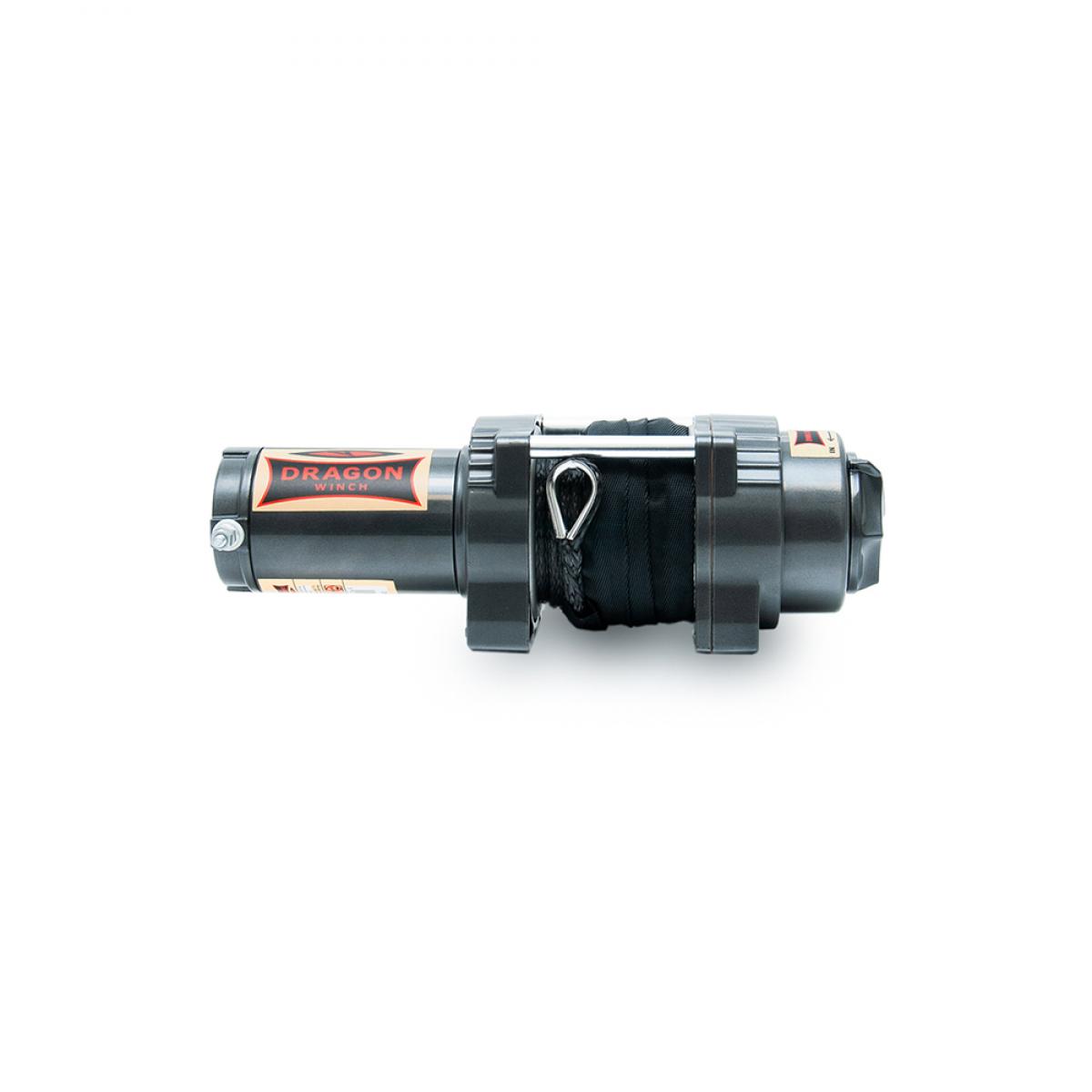

| Length of the synthetic rope: | 15 m |

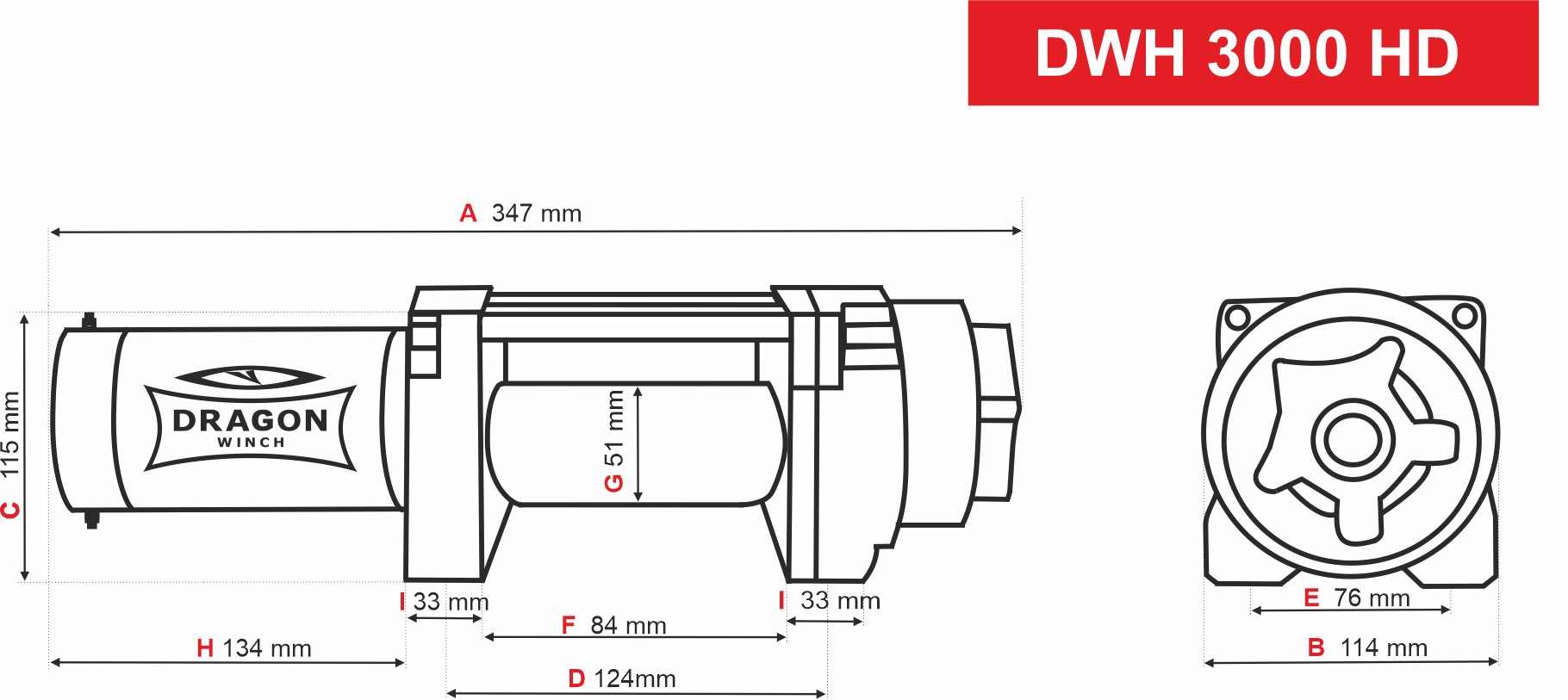

| Mounting bolt patern: | 124 mm x 76 mm |
| Overall product dimensions (LxWxH): | 346 mm x 114 mm x 115 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 453 | 907 | 1360 |
| CABLE SPEED | m/min | 4,9 | 4,3 | 3,5 | 2,8 |
| POWER CONSUMPTION 12V | amp | 18,7 | 50 | 101 | 135 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 1326 | 1074 | 925 | 802 | 666 |
| CABLE LENGTH ON THE DRUM | m | 2,6 | 5,4 | 8,6 | 12,4 | 15,0 |

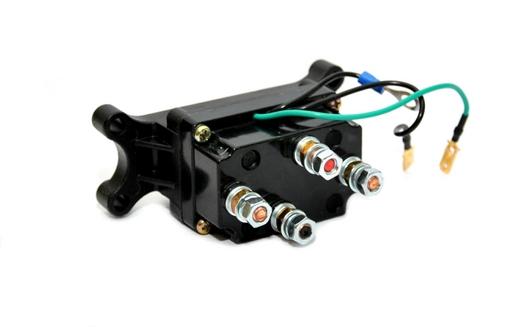

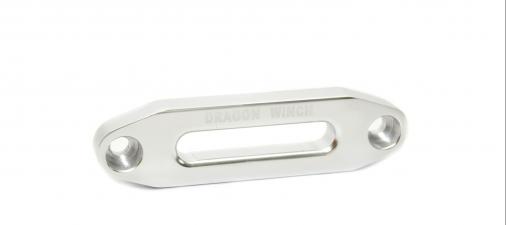

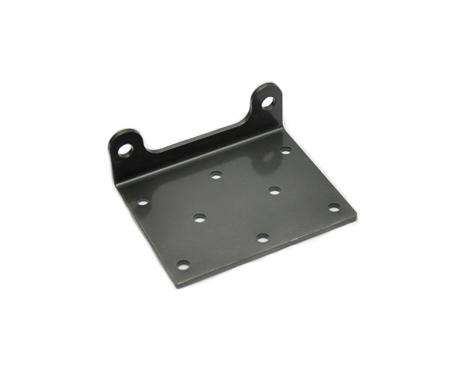

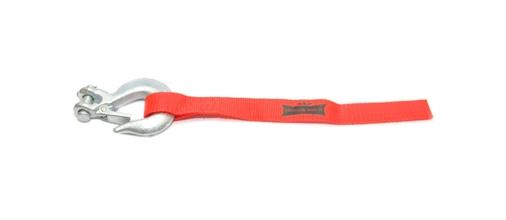

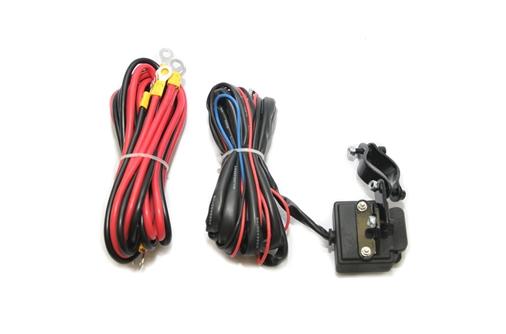

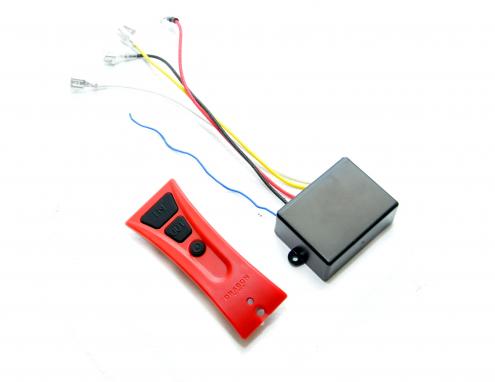

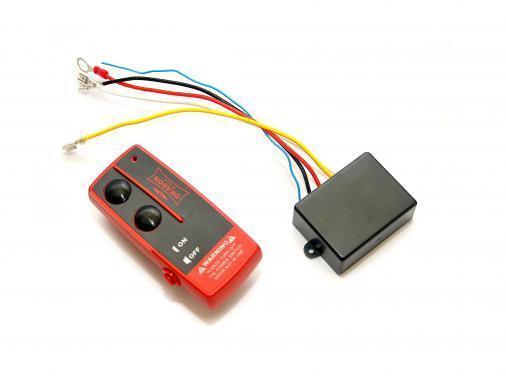

Kit components
