Product attributes
| Dedicated : |  |
| Voltage: | 12V |

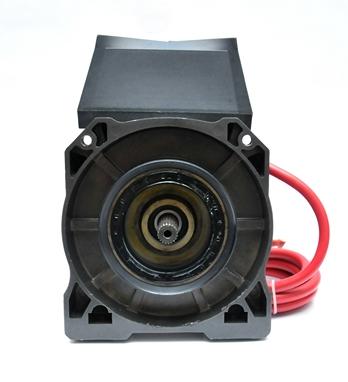

| Motor: | 9 HP |
| Pulling rate: | 12000 lb/5443 kg |

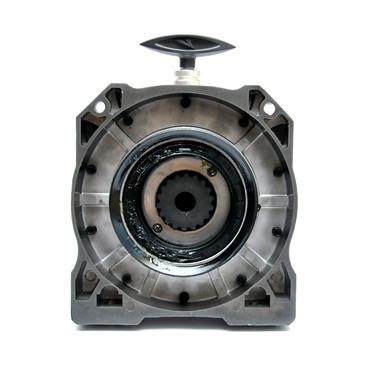

| Gear train: | 3 stage planetary |
| Reduction rotio: | 273:1 |
| Brake: | dynamic |
| Length of the steel cable: | 28 m |
| Length of the synthetic rope: | 30 m |
| Weight: | 40 kg |
| Mounting bolt patern: | 254 mm x 114 mm |

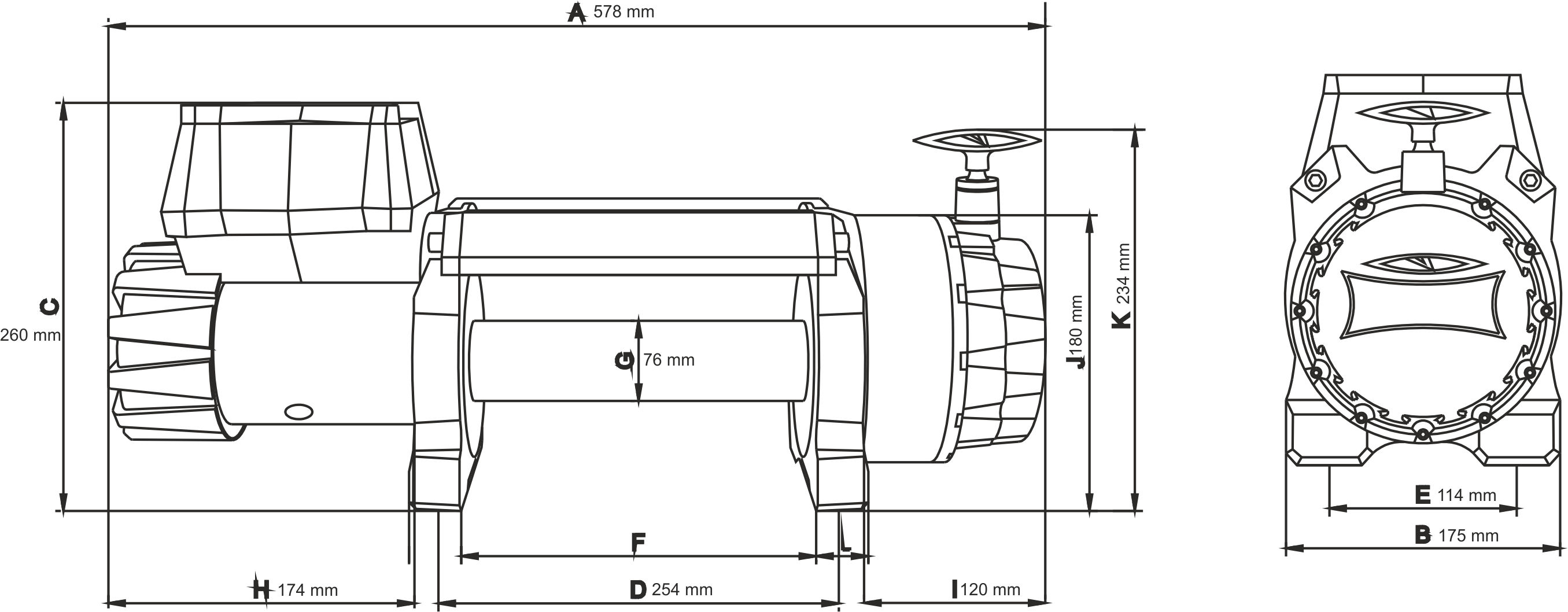

| Overall product dimensions (LxWxH): | 578 mm x 175 mm x 260 mm |
CABLE WINDING SPEED AND POWER CONSUMPTION (THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 1814 | 3629 | 5443 |
| CABLE SPEED | m/min | 6,5 | 5,2 | 3,8 | 2,0 |
| POWER CONSUMPTION 12V | amp | 65 | 177 | 353 | 470 |
| POWER CONSUMPTION 24V | amp | 39 | 100 | 201 | 265 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | |
| CABLE PULL | kg | 5443 | 4299 | 3701 | 3211 |
| CABLE LENGTH ON THE DRUM | m | 5,8 | 12,7 | 20,0 | 28,0 |

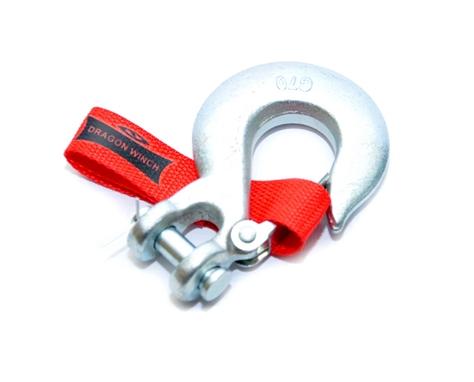

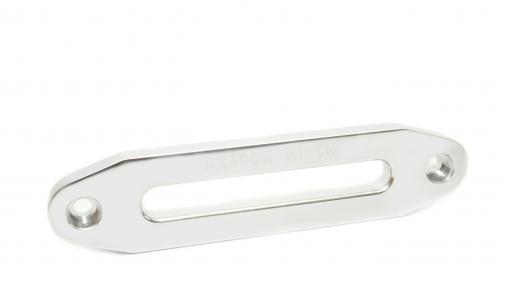

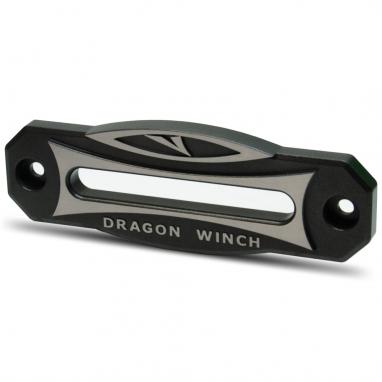

Kit components
