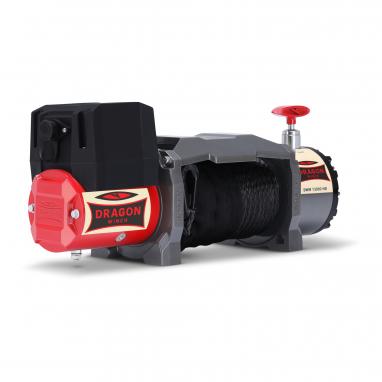

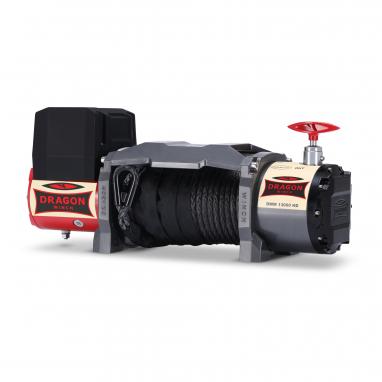

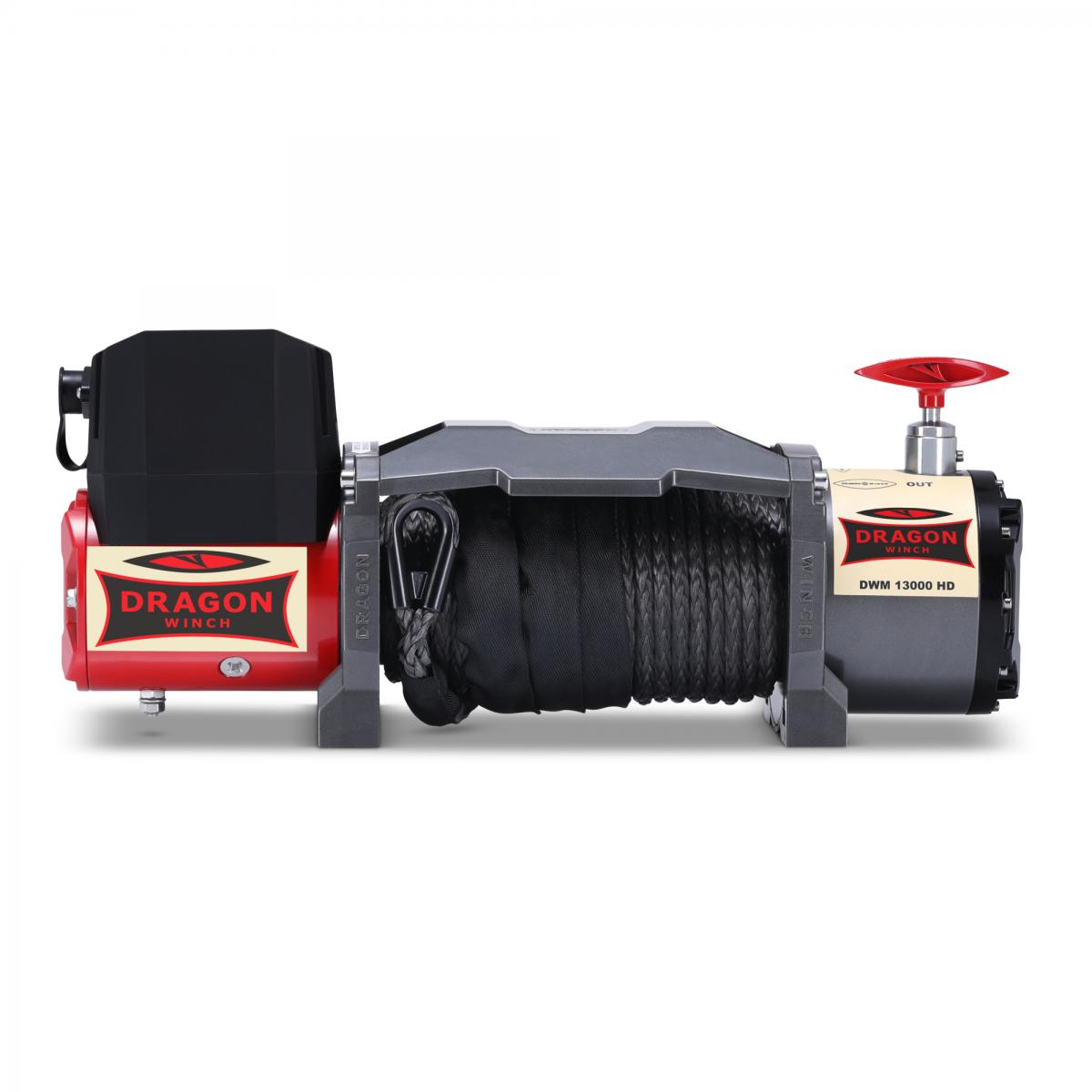

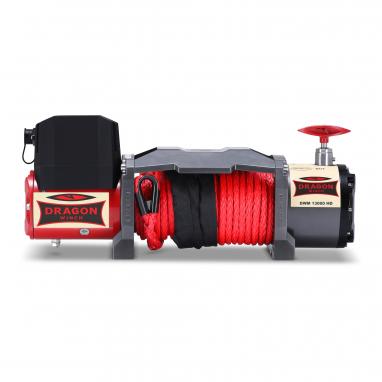

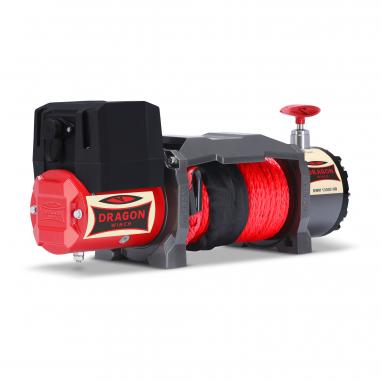

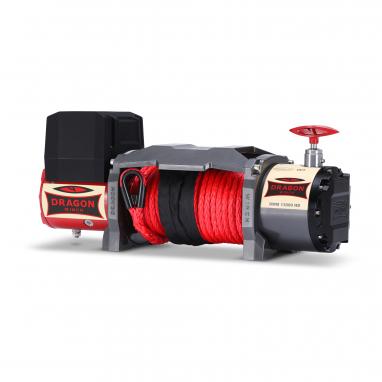

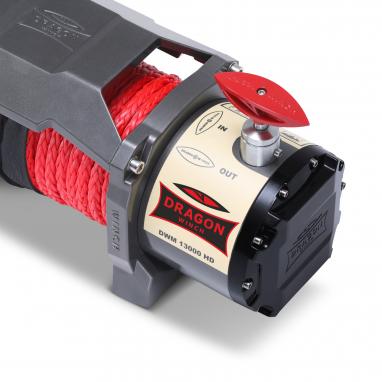

Wyciągarka DWM 13000 HD B_1
Voltage:
Price:555.81EUR
Quantity:
Product attributes
Dedicated :industrial vehicles, off-road vehicles
Voltage:12V
Motor:6,8 HP
Pulling rate:13000 lb/ 5897 kg
Gear train:3 stage planetary
Reduction rotio:265:1
Brake:dynamic
Length of the steel cable:20 m
Length of the synthetic rope:20 m

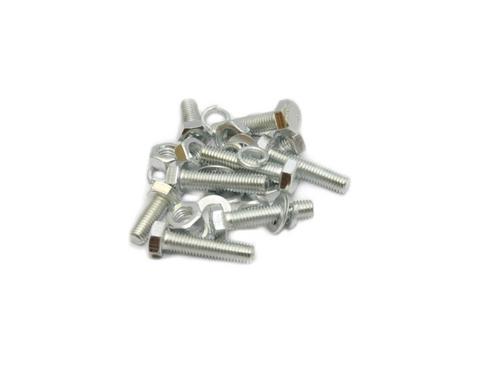

Mounting bolt patern:254 mm x 114 mm

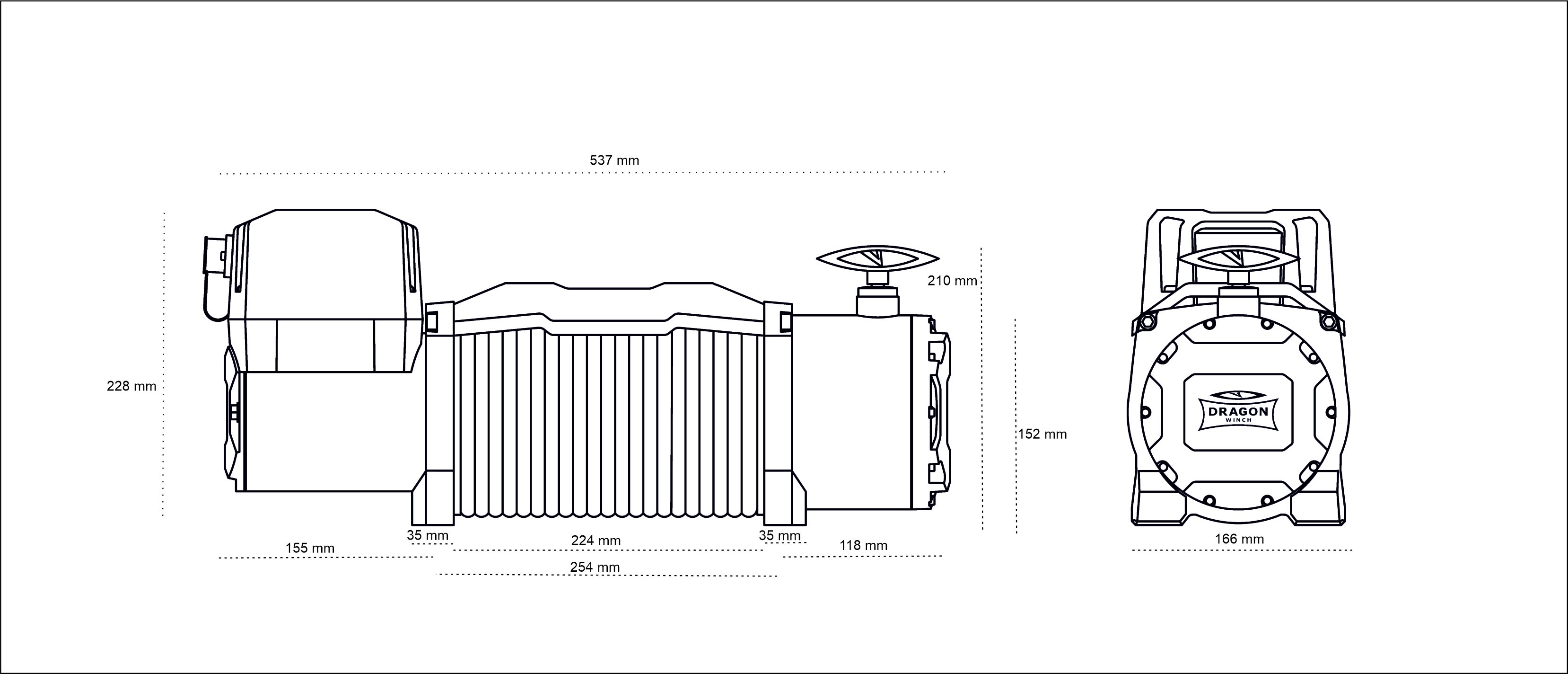

Overall product dimensions (LxWxH):537 mm x 166 mm x 228
CABLE WINDING SPEED AND POWER CONSUMPTION ( THE FIRST CABLE LAYER ON THE DRUM)
CABLE LOAD kg - 1814 3629 5897
CABLE SPEED m/min 5,9 4,4 2,8 0,8
POWER CONSUMPTION 12V ampery 58 158 314 448
POWER CONSUMPTION 24V ampery 35 89 178 245

PULLING FORCE DEPENDING ON CABLE LAYER
CABLE LAYER   1 2 3 4 5
CABLE PULL kg 5897 4658 4009 3463 2889
CABLE LENGTH ON THE DRUM m 4,9 11,0 17,8 26,0 30,0

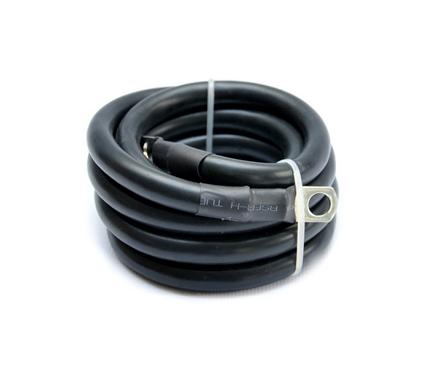

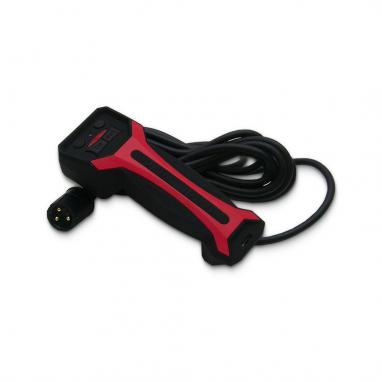

Kit components
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
  • DWM 13000 HD S
